product description

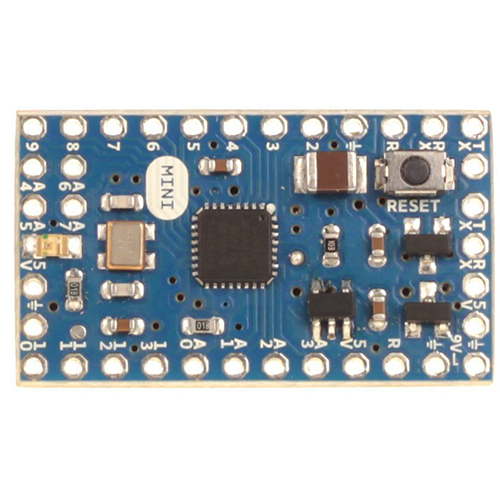

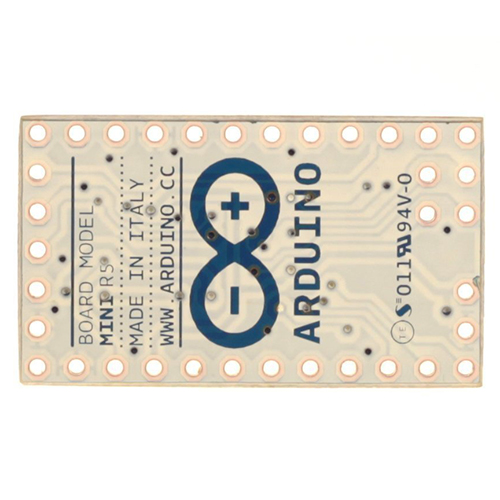

The Arduino Mini, a tiny microcontroller board originally based on the ATmega168, is now available 328 for breadboards with limited space. It has 14 digital input / output pins (6 of which are available as PWM outputs), 8 analog inputs and a 16 MHz crystal oscillator. It can be programmed with USB serial adapters or other USB or RS232 to TTL serial adapters. The new Mini (revision 05) provides a new package for the ATmega328 so that all the components are available on the board. It also has an onboard reset button. The new version of the pin configuration and revision 04 the same. WARNING: Do not power the Arduino mini over 9 volts, or plug it back in; otherwise, it may cause a crash. This is the lowest cost way to develop and deploy with a true Arduino platform. Technical Specifications Microcontroller ATmega328 Operating Voltage 5V Input Voltage 7-9 V Digital I / O Pins 14 (6 of which provide PWM output) Analog Input Pin 8 (of which 4 pins are branched) Each I / O pin DC Current to Foot 40 mA Flash 32 KB (2 KB used by Boot Loader) SRAM 2 KB EEPROM 1 KB Clock Speed
