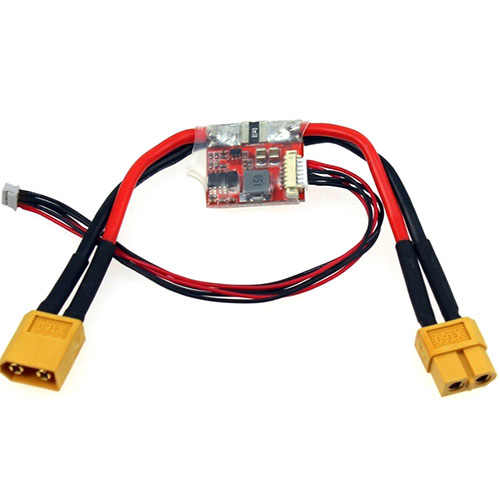

APM 5.3V DC BEC Power Module

product description

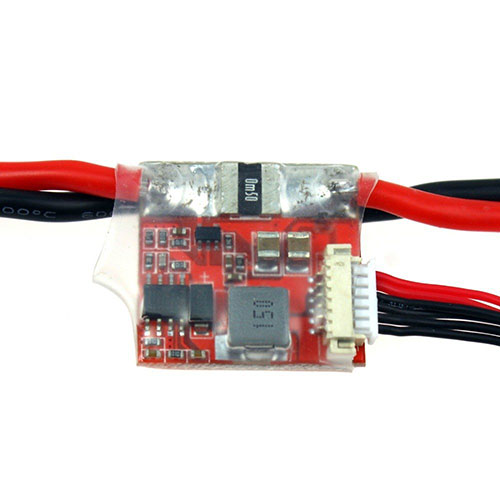

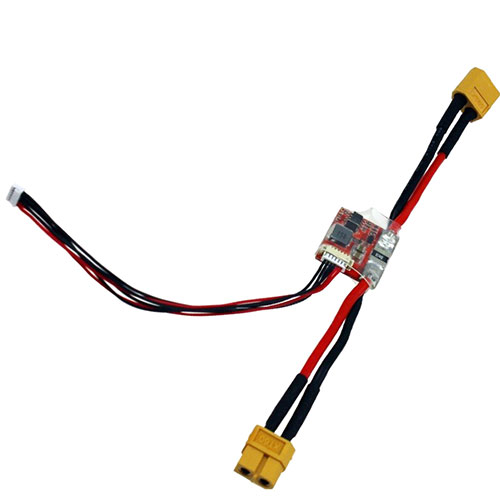

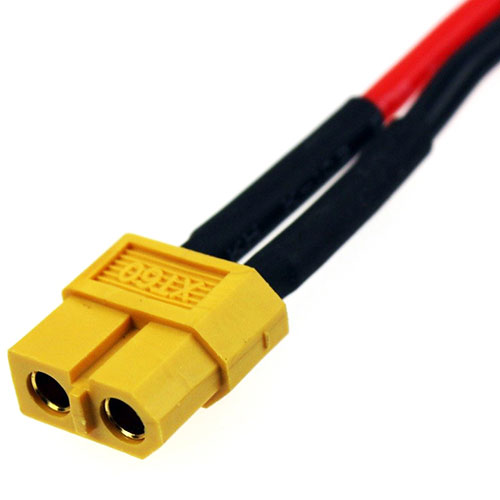

The APM 2.5 power module is an easy way to provide your APM 2.5 with a clean power supply and current consumption and battery voltage measurement for your APM 2.5 over a 6-wire cable. The onboard switching regulator outputs 5.3V and can output up to 2.25A from a 4S LiPo battery. The power module is fully assembled with the Deans connector and wrapped in a shrink tube for protection.
Note: The power module is only for powering APMs, RC receivers and APM accessories (GPS, 3DR radio). This is not a design steering gear. Use your own ESC / BEC aircraft.

The onboard switching regulator outputs 5.3V and can output up to 2.25A from a 4S LiPo battery.
The power module is fully assembled with the Deans connector and wrapped in a shrink tube for protection.
Note: The power module is only for powering APMs, RC receivers and APM accessories (GPS, 3DR radio). This is not a design steering gear. Use your own ESC / BEC aircraft.
The maximum input voltage: 25V
Applies to APM 2.5 2.6 2.8 PIX PIXHAWK
specification:
The maximum input voltage: 25V
Maximum current detection: 90A

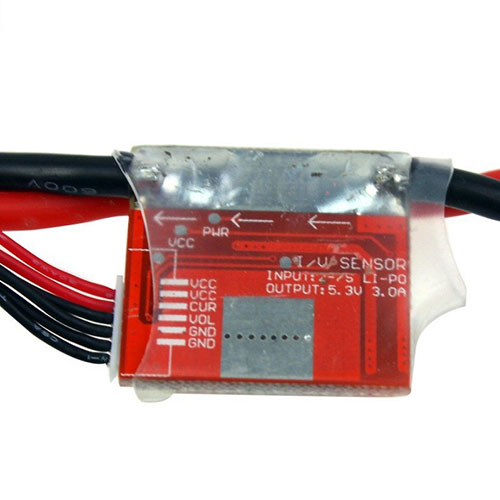

Voltage and current measurements are configured as 5V ADCs
Switching regulator output maximum 5.3V and 2.25A

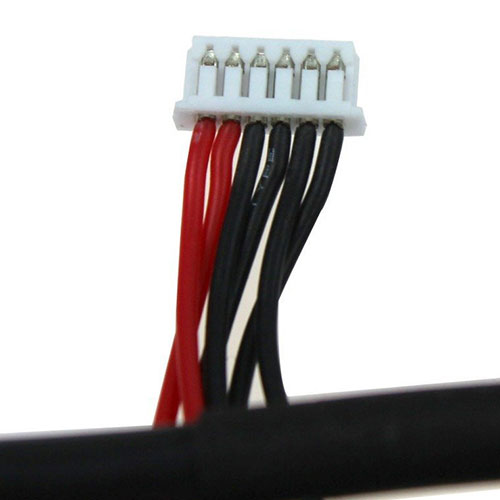

The 6-position DF13 cable plugs directly into the "PM" connecto of the APM 2.5
Applies to APM 2.8 PIX PIXHAWK
