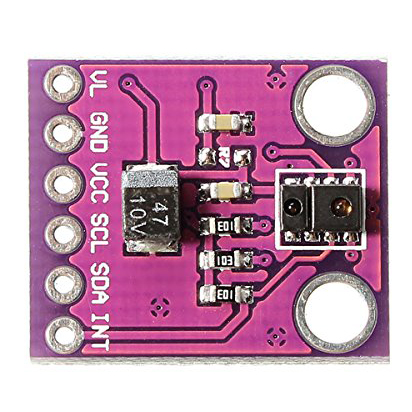

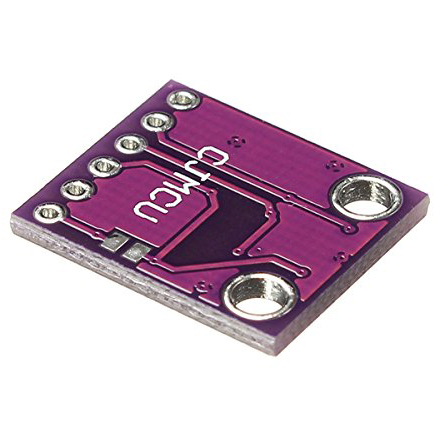

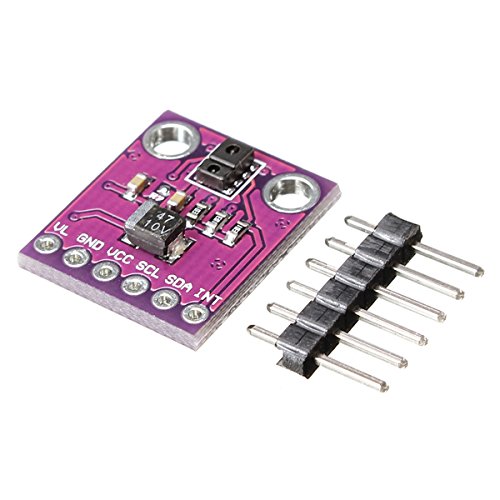

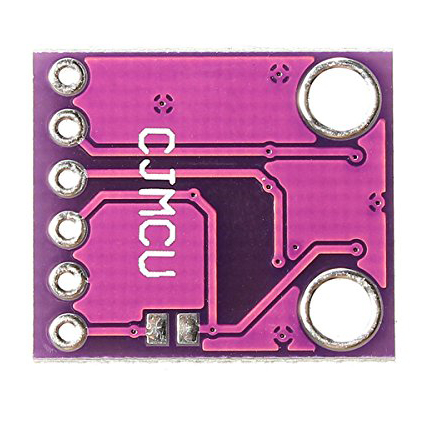

APDS-9930 Proximity Sensor Approaching and Non Contact Proximity Breakout

product description Features: ? Optical module with integrated ALS, infrared LEDs and proximity detector ? Ambient Light Sensing (ALS) - The general human visual response - Programmable interrupt capability with upper and lower thresholds - Up to 16-bit resolution - High-sensitivity operation behind dark glass 0.01lux low lumen performance Proximity detection - Fully calibrated to 100 mm detection - Integrated infrared LED and synchronous LED driver - Eliminate proximity sensor factory calibration ? Programmable wait timer Waiting state power consumption - μA typical - Programmable from 2.7 ms to over 8 seconds ? I2C interface is compatible - Up to 400kHz (I2C Fast Mode) - Dedicated interrupt pin ? Sleep mode power consumption - 2.2μA typical ? Small package 3 (L) x 2.36 (W) x 1.35 (H) mm application: ? Dimmable phone backlight ? laptop / monitor safe ? Hands-free mode is automatically enabled ? Auto pop-up menu ? Digital camera eye sensor Included packages: 1 xAPDS 30 digital proximity and ambient light sensor
