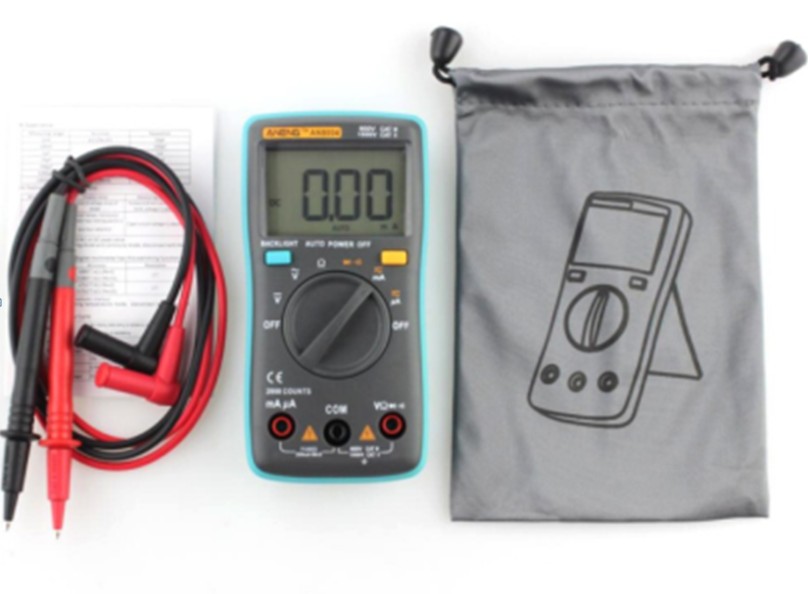

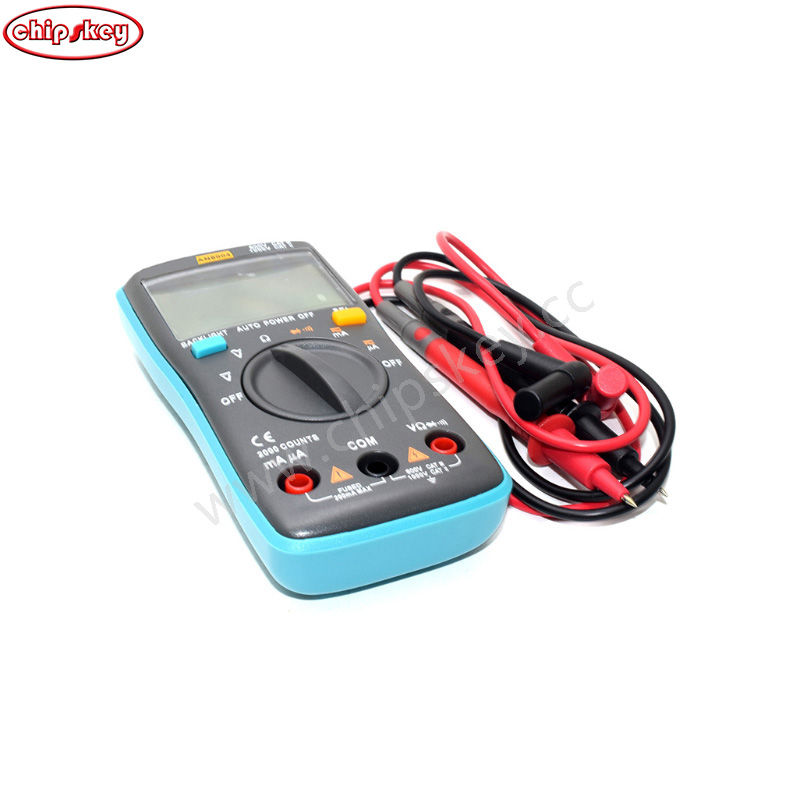

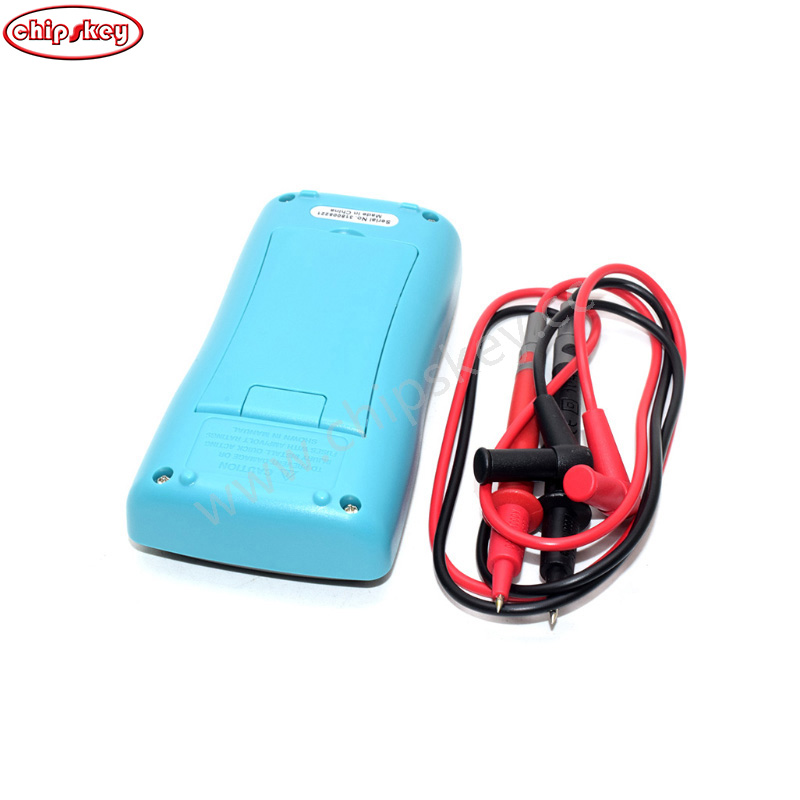

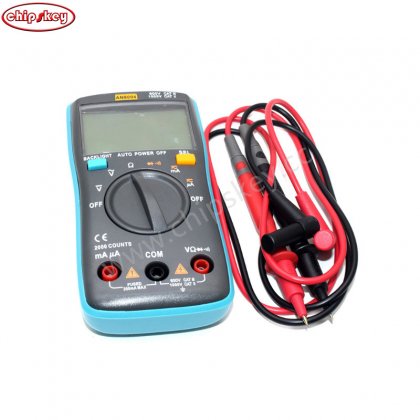

ANENG AN8004 LCD Auto Range Digital Multimeter Voltmeter Ammeter Resistance DC / AC Transistor Tester Voltmeter multi meter
ANENG AN8004 multimeter high precision automatic range pocket digital universal meter electrician special electrical line
feature:
Automatic range
550V protection of resistors, capacitors and frequency range
Large LCD display with a maximum of 2000 counts
Sample rate: 3 times per second
Backlight
Polarity identification
Low pressure indication
Current measurement
Automatic power-off
Main measurements: AC/DC voltage, AC/DC current, resistance, diode and continuity test
AC voltage: 0.1mV to 750V
DC voltage: 0.1mV to 1000V
AC current: 0.1Ua to 200mA
DC current: 0.1Ua to 200mA
Resistance: 0.1Ω to 20MΩ
specification:
(1) DC voltage: 200mV/2V/20V (±0.8%+5), 200V/800V (±1.0%+8)
(2) AC voltage: 200mV (±1.5%+8), 2V/20V/200V (±1.2%+5), 600V (±1.5%+5)
(3) DC current: 20mA (±1.5%+5), 200mA (±1.2%+5)
(4) AC current: 20mA (±2.0%+5), 200mA (±1.5%+5)
(5) Resistance: 200Ω (±2.5%+5), 2K/20K/200K/2M (±1.0%+5), 20MΩ (±2.5%+5)
(6) Overtravel indication: OL
(7) Working environment: 0~40°C, relative humidity <80%
(8) Power supply: 3V (1.5V AAA battery * 2 only)
(9) Size: 130*65*30mm
(10) Weight: 130g
