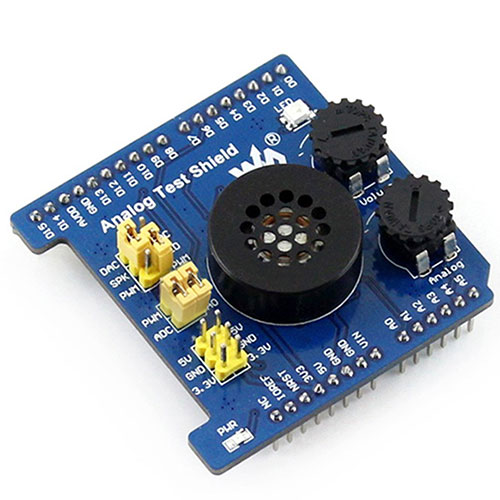

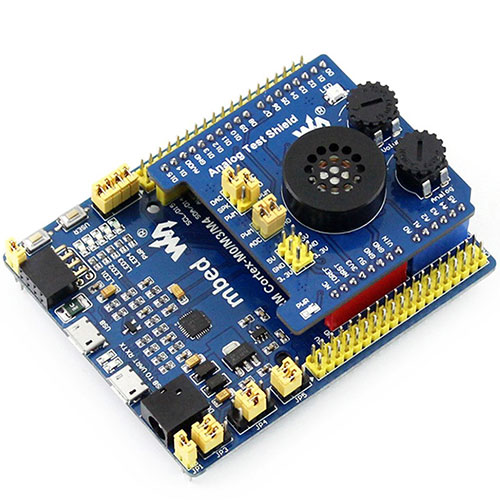

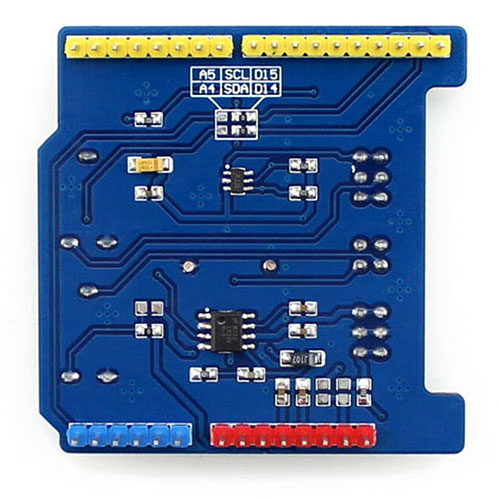

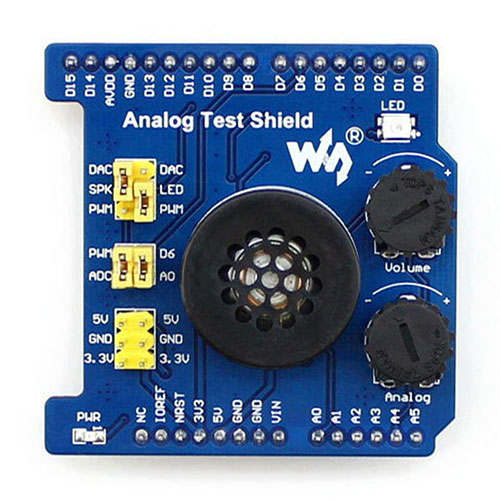

Analog Test Shield Adapter Arduino Expansion Developemnt Board Features AD Acquisition DA Output Compatible with Arduino UNO,Leonardo, NUCLEO, XNUCLEO

product description description: Analog Test Shield is an Arduino expansion board that supports analog input / output. Arduino standard interface, compatible Arduino UNO, Leonardo, NUCLEO, xNUCLEO Arduino board. Rotate the potentiometer to adjust the analog input signal. Onboard 12-bit DAC MCP4725, outputs the desired waveform. Demonstrate DAC / PWM effects with LEDs and speakers. specification: Arduino standard interface compatible with Arduino board such as Arduino UNO, Leonardo, NUCLEO, xNUCLEO Rotate the potentiometer to adjust the analog input signal Onboard 12-bit DAC MCP4725, outputs the desired waveform Demonstrate DAC / PWM effects with LEDs and speakers Release list: 1 * simulation test shield note: Due to different production batches, the color of the product may vary.
