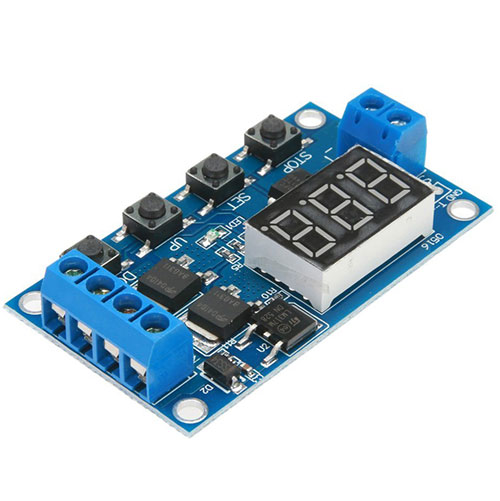

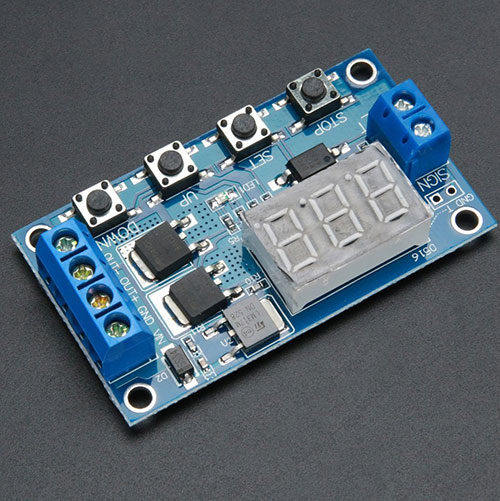

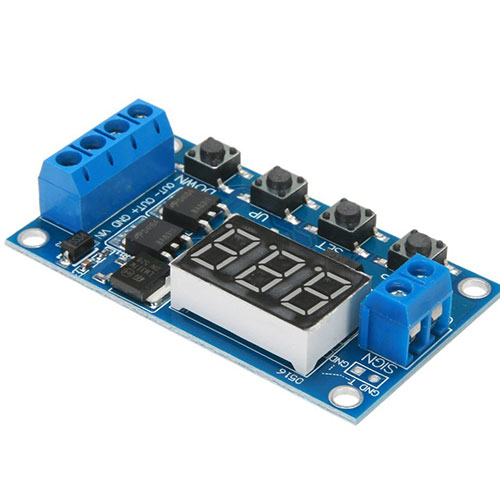

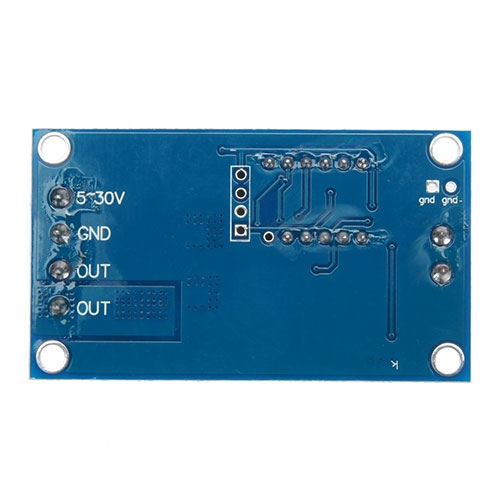

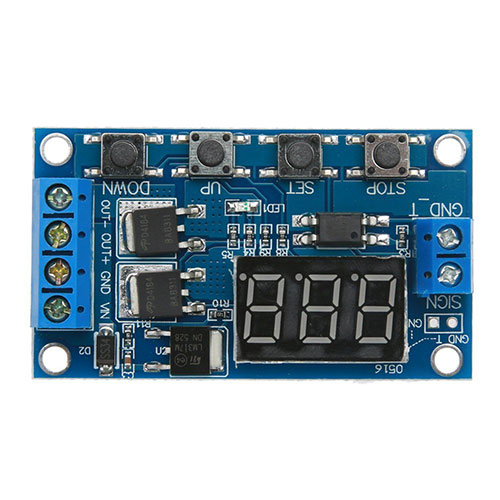

Alloet Trigger Cycle Timing Delay Control Switch Circuit Double MOS Control For Industrial Digital Display

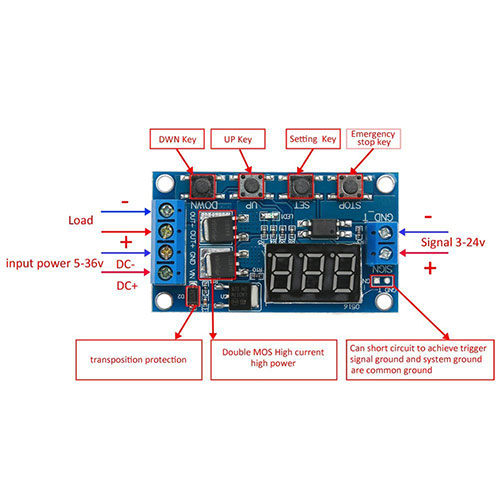

product description 100% new and high quality. It can automatically short circuit to the ground. Auxiliary cooling conditions, the maximum current up to 30A. Signal and the system is not common ground, in order to improve the anti-interference ability of the system. The use of optocoupler isolation to enhance anti-interference ability, industrial circuit board; set the parameters, if the power, the permanent storage. Product Specifications: Trigger signal power: high trigger DC 3.0-24V Output capacity: DC 5V-36V Normal state continuous current: 15A Power: 400W Auxiliary cooling conditions, the maximum current up to 30A Use life: unlimited on / off Operating temperature: -40 ℃ ~ 85 ℃ Quantity: 1PC Product Size: about 60 * 35 * 12mm / 2.36 * 1.37 * 0.47 " Net weight: about 15 grams Operating mode P1 mode: After the signal is triggered, the relay will connect the OP time and then open; after the OP time, continue P1.1: Re-trigger signal is invalid P1.2: trigger again, recount the time P1.3: signal trigger reset again, the relay is disconnected and stop timing note: Due to manual measurement, please allow 1-3mm different. Due to different display and different lighting, the picture may not reflect the actual color of the item. Thank you for your understanding. package: 1 trigger cycle timing delay module
