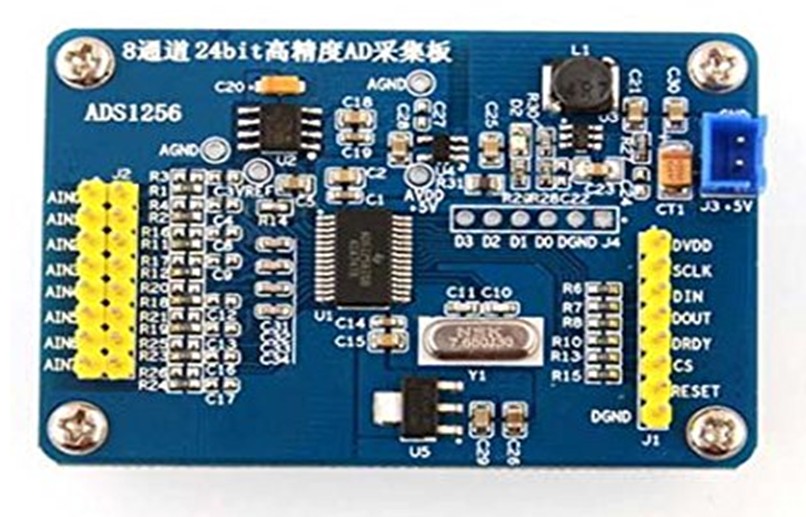

ADS1256 High-precision ADC Module Conversion 24-bit 8-channel
description:
Type: Voltage Regulator
Model: ads1256 module
Status: Brand new
Application: Musical instruments and apparatuses
Ads1256 advertising module 24 bit ADC module high precision ADC data acquisition card
1 power input terminal for the upper with a lower ground end is + 5 V
2. The lt3461 power chip has high rejection ripple noise.
3 power indicator.
4. Lp2985 low voltage difference can effectively suppress low frequency noise to produce a very pure + 5 V to provide analog power for asd1256
5 .adr431brz B series of high precision standards. Reference chip forms a high precision 2.500000 V benchmark
6 reference test holes.
7 Analog Inputs Ain0-ain7 has a total of eight input ports that can be used as 8 independent single inputs or as a 4 differential input, ain0, ain1 as the group ain2 and ain3 ain4 and ain5 ain6 and ain7.
8 analog Grand input port
9 input resistance and wear resistance. Resistance to tooth decay is not a default weld.
10 .ads1256 main control chip.
11 .ams1117 – 3.3 V provides digital voltage for ads1256.
12. The brand's NSK crystal 7.68 MHz
13 communication interface with MCU.
