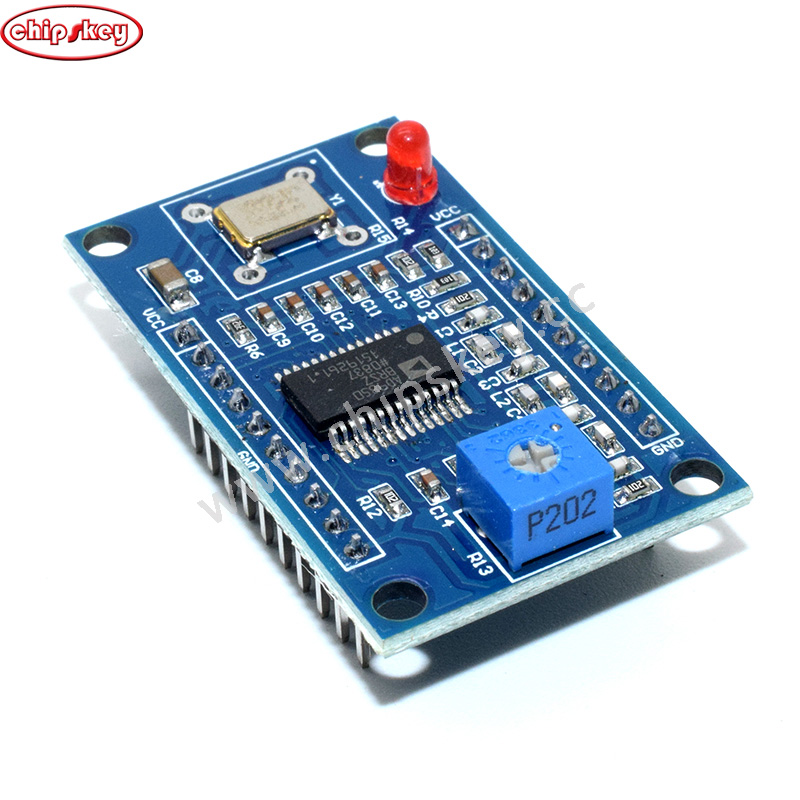

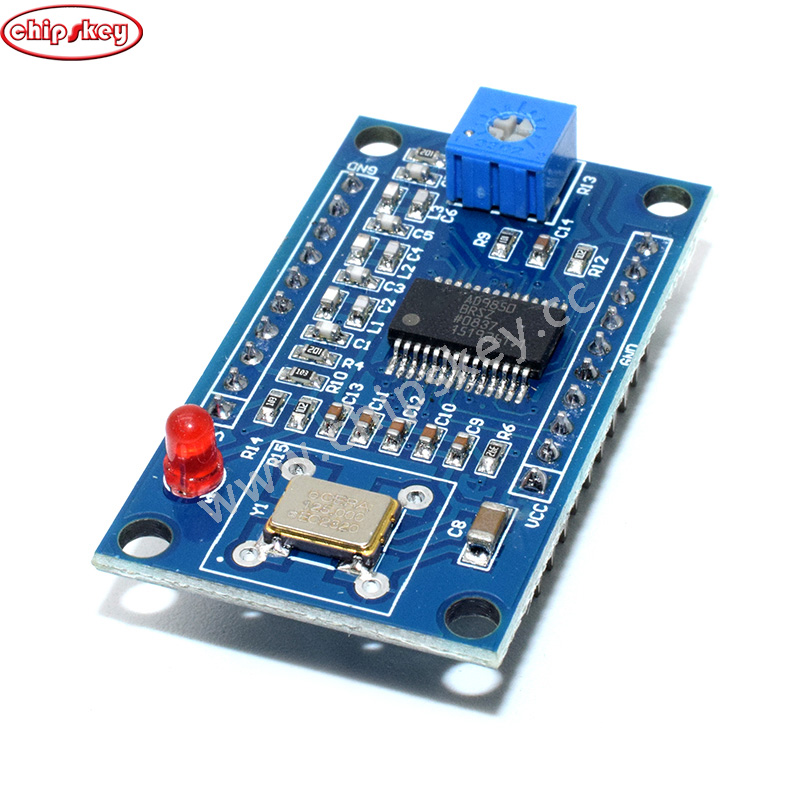

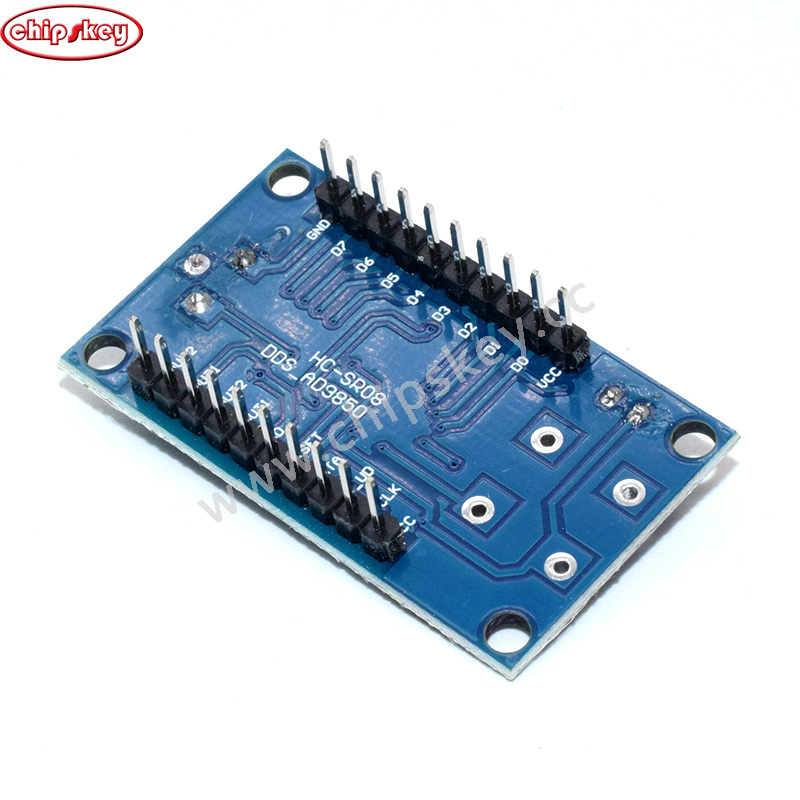

AD9850 40MHz DDS Signal Generator Module

AD9850 40MHz DDS Signal Generator Module 1. AD9850: 0-40MHz. 2 sine wave and 2 square wave output. 3. After 20-30MHz frequency harmonics increase, the waveform will be getting cleaner. Square wave: 0-1MHz. , 5. With 70MHz low-pass filter, so the waveform is better than SN. , 6. Parallel and serial data input can be selected by jumper. 7. DA generated reference pin (PIN12) pin can easily adjust the application of the output waveform amplitude. 8. Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted for different duty cycle square wave. 9 Active AD9850 125MHz Crystal Oscillator Module. , 10. Size: 4.5cm x 2.6cm It is brand new, high quality and high performance.
