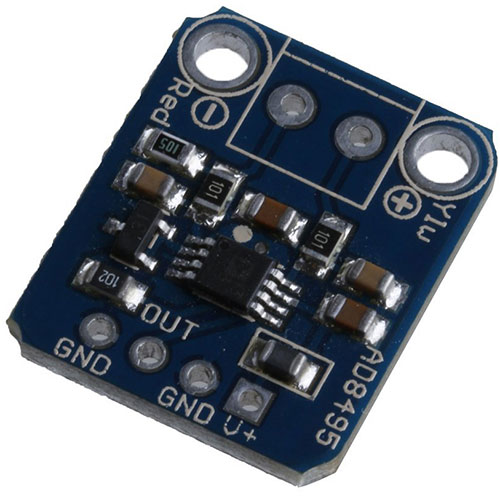

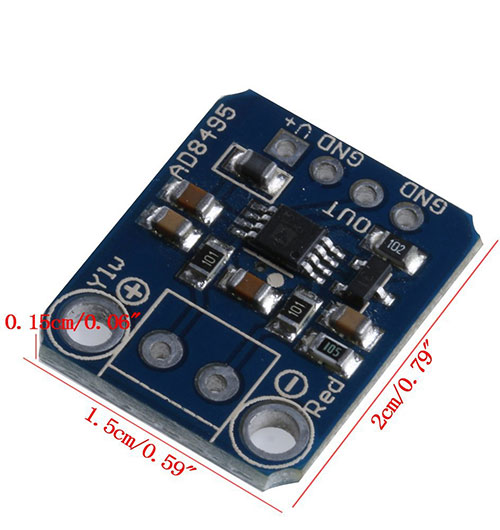

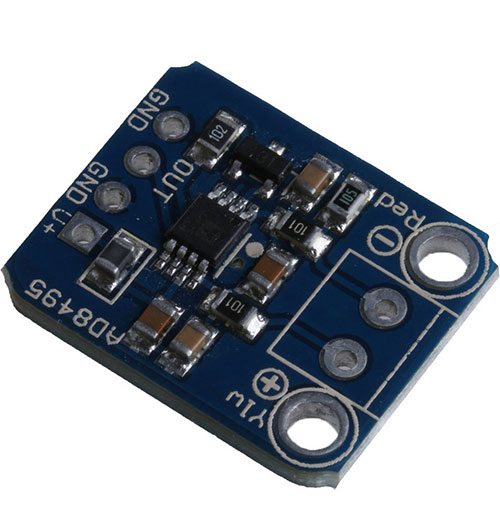

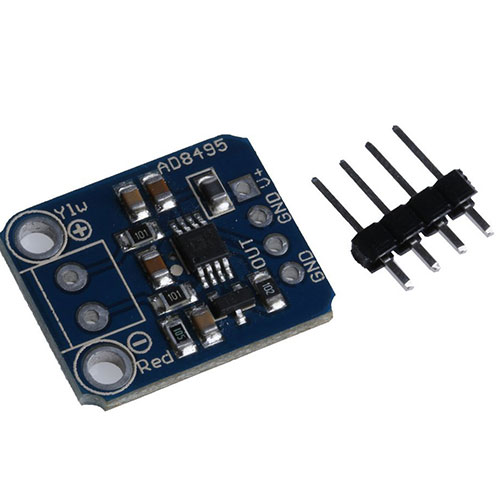

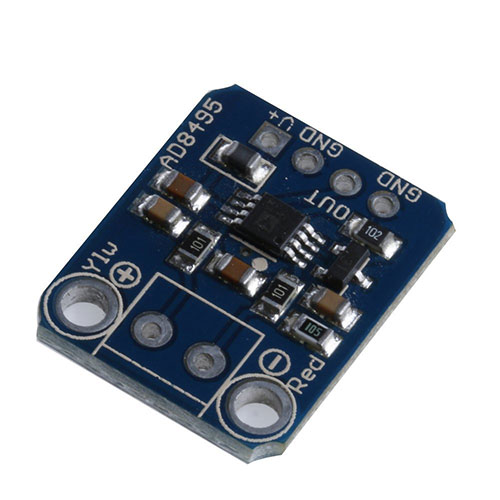

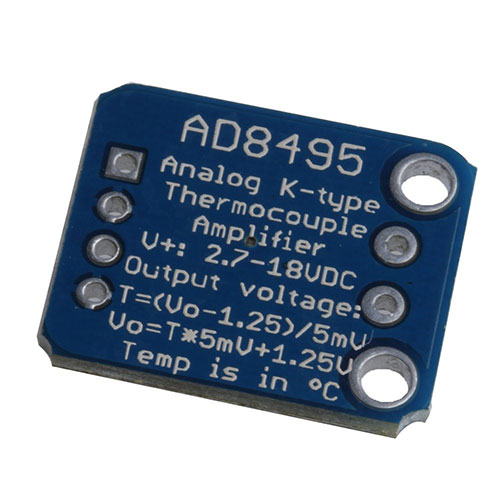

AD8495 ARMZ Thermal K-Type Thermocouple Amplifier Analog Output Module

product description 100% new, high quality Material: Electronic components These amplifiers will produce small thermocouple junction voltage converters Analog-to-digital converter (ADC) or microcontroller that easily reads signals. From the thermocouple to The output gain of the amplifier is about 5 mV / ° C The AD849x uses an on-chip temperature sensor for cold junction compensation. Thermocouple Accurate measurement over a wide temperature range. AD849x built a precision instrumentation amplifier. The amplifier has a high common mode rejection The ability to suppress long lengths can cause the thermocouple to pick up common mode noise. additional Protection features, high-impedance amplifier input easy to add additional filtering measures. The AD849x supports a wide supply voltage range. With a single 5V supply, the AD849x can cover nearly 1000 Degree of thermocouple temperature range. 3V power supply, can be directly related to low power Voltage ADC interface. It can also be used up to ± 18V power supply, supporting wide industrial systems Total Mode input range of the call. The AD849x can easily measure negative temperature regardless of the power rail. It can be used Adjust 0 ° C output voltage reference pin, which is AD849x output range adjustment, ADC provides the flexibility to adapt. Stable input is designed to handle a variety of real connections.8495 can withstand far Power rail above input voltage. For example, ± 5 V power supply, The voltage input of ± 35 V guarantees that the device will not be damaged. Minimum and The maximum input bias current is helpful to disconnect the thermocouple fault detection. Apply a J or K thermocouple Oven temperature measurement Exhaust gas temperature detection Quantity: 1Pc
