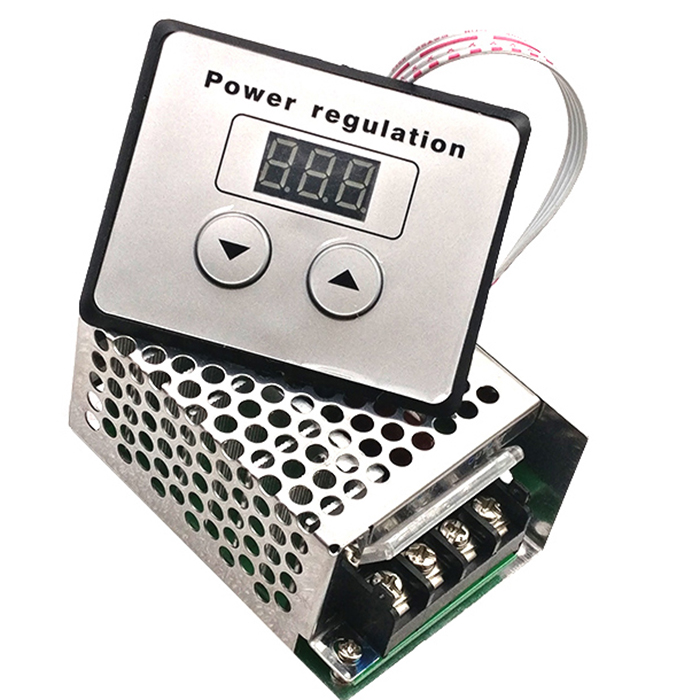

AC 220V 4000W SCR Thyristor, High Power Electronic Digital Voltage Regulator

parameter:
Use voltage: AC 220V
Maximum power: 4000W resistive load limit power, room temperature recommended for use within 2000W

Voltage regulation: 0-100% (220 volts, 100-level adjustment, non-linear)

?

The new bidirectional high-power thyristor is used, because the current can reach 40 amps, which solves the problem of overcurrent caused by the electric resistance of the electric furnace wire being too small in the case of cooling; the output voltage of the mains can be conveniently adjusted. Any adjustment between 0-100% (220 volts, 100-level adjustment, non-linear) for use by electrical appliances. Such as: electric furnace, water heater heating, lighting dimming, small motor speed, electric iron temperature adjustment. Thereby achieving the effects of dimming, temperature regulation and pressure regulation. Large electrical appliances that can be used with electrical power less than 2000 watts are generally large enough to be used in general household appliances or small factories. (This regulator is equipped with two-way high-power thyristor, which can be used without any components, which is very convenient and practical). With a heat sink, the buyer can use it when they get it.

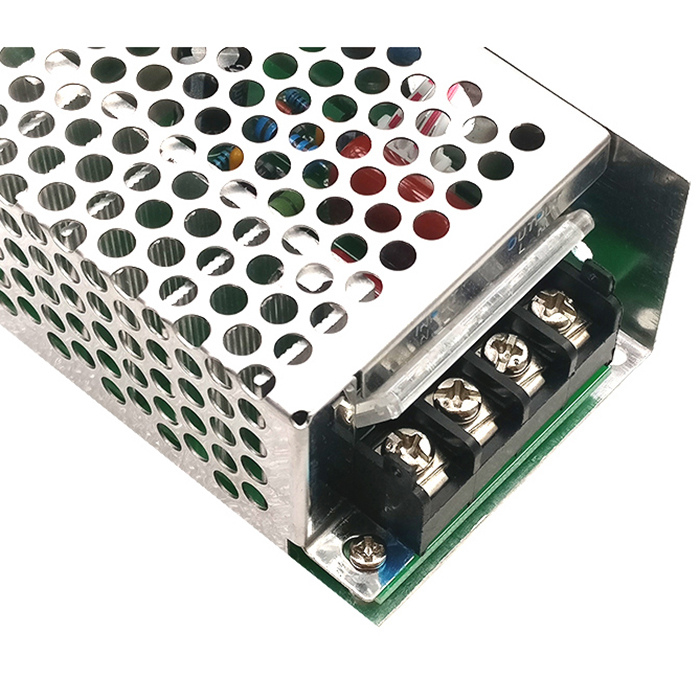

High current terminal block

Button adjustment stability spike potentiometer type regulator

The value is automatically saved, and automatically starts up to the last adjusted value after power-on.

?Unified anti-static packaging

?All metal film resistors are stable and durable

??The voltage regulator with a peak voltage absorption circuit effectively protects the high-power thyristor, and has a longer life and more durability.
