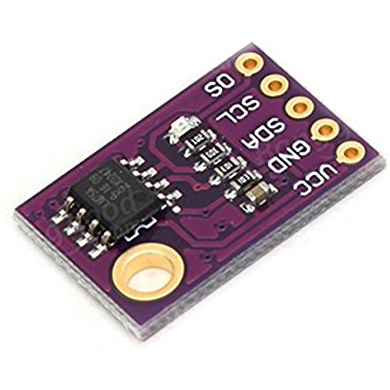

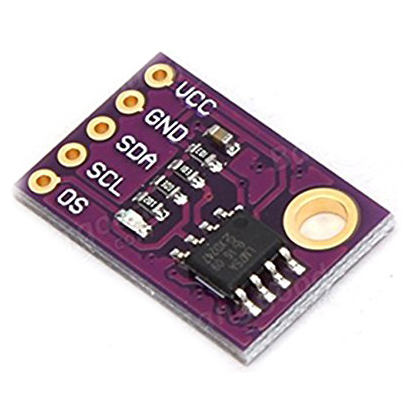

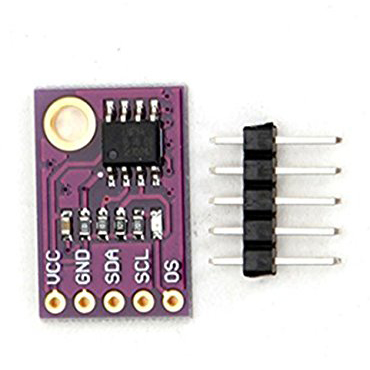

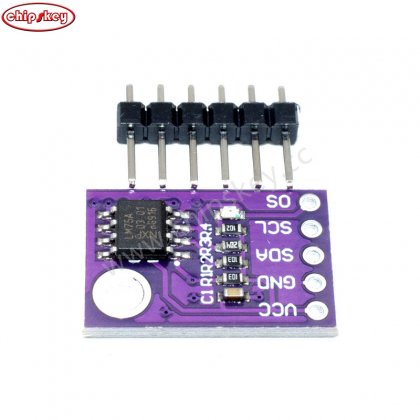

75 LM75A I2C Temperature Sensor Development Board Module

product description If you need more details, please contact us. 75 LM75A or B High-Speed ??I2C Interface High-Accuracy Temperature Sensor Board The ModuleRandom Delivery Function, like the LM75A or B, is a high-speed I2C interface temperature sensor that converts the temperature range -55 to +125 directly into a digital digital signal, and Can achieve the precision of 0.125. The MCU can directly read the data in its internal registers through the I2C bus and set different operating modes by running on the four data registers via I2C. The LM75A has three selectable logic pins that allow eight devices to be connected on the same bus without collision. Features: I2C bus interface, device 7-bit slave 1001xxx, the same bus can be extended beyond eight devices Power range: 2.8V ~ 5.5V, temperature range: -55 ~ +125 ° C The 11-bit ADC provides a temperature resolution of 0.125 ° C Temperature accuracy: 2 (-25 to 100) 3 (-55 to 125) Programmable temperature threshold and hysteresis set point In order to reduce power consumption, the current consumption in shutdown mode is only 1.0A The device can be used as an independent temperature controller ESD Protection: In the JESD22A114 standard, 2000V HBM mode can be delivered In JESD22A115 standard, it can pass 200V MM mode Under the JESD22-C101 standard, a 1000V CDM model can be used JEPEC standard (JESD78), through the latch test can reach 100mA Small 8-pin package: SO8, TSSOP8 and ultra small package XSON8U.
