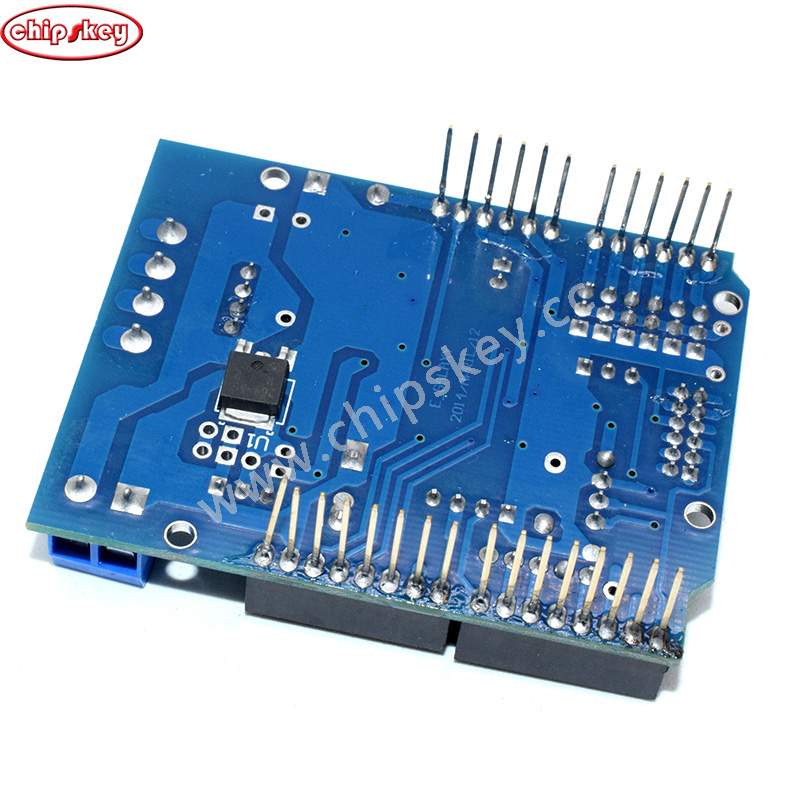

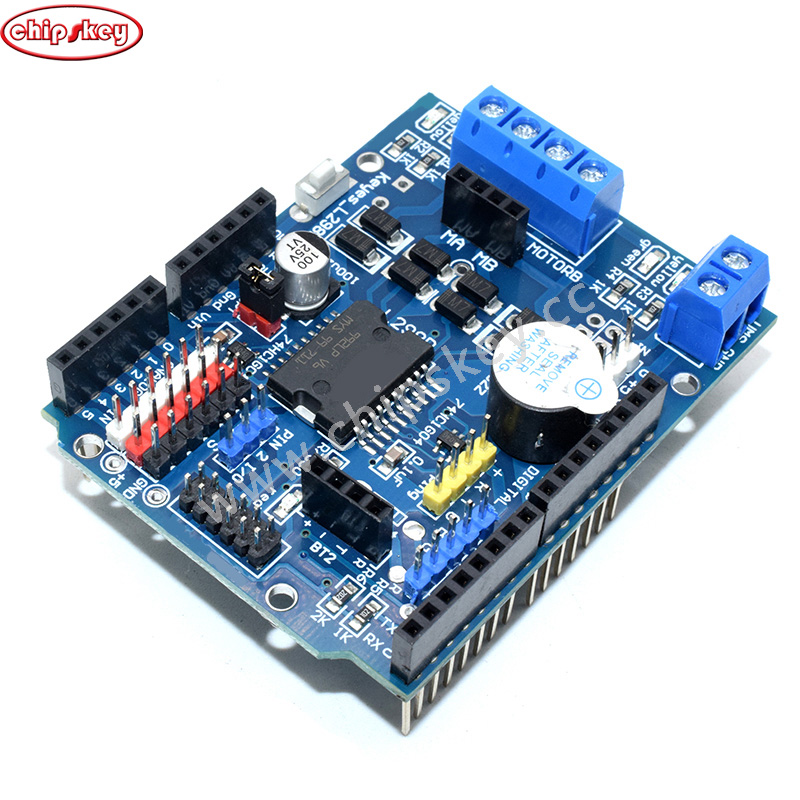

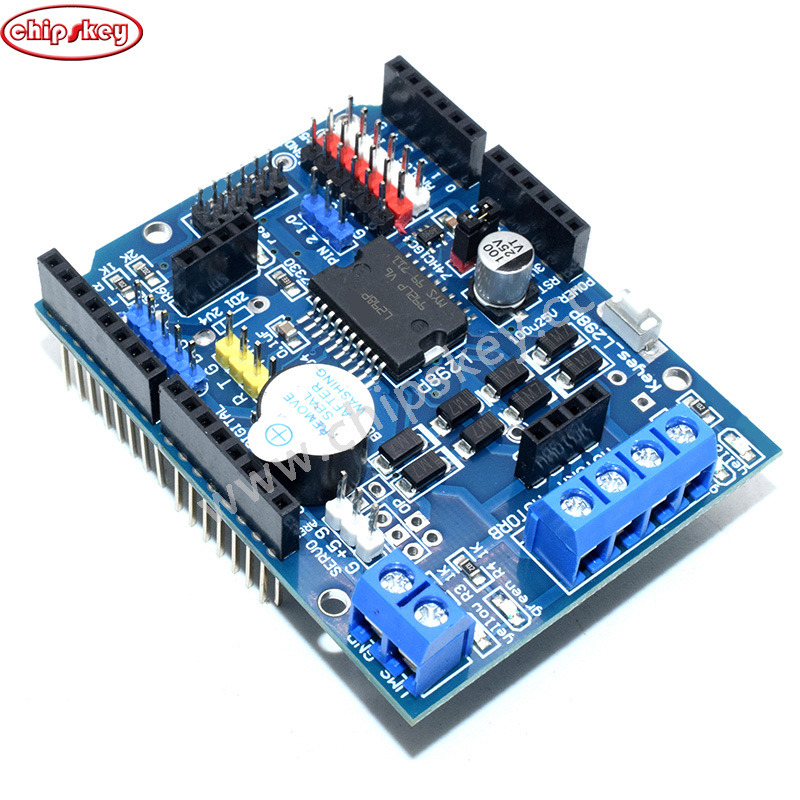

5V L298P Motor Drive Shield board for arduino

Product description
Product Features
L298P which can directly drive two DC motors with drive current up to 2A
Stack design can be directly plugged into the Arduino
The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver
Motor power supply can use input in ArduinoVIN or post input of driver for jumper wire switch
Use eight high-speed Schottky diodes at motor output as protection
Item Specification:
Logical input voltage VD: 5V
Drive input voltage: VIN 6.5 - 12V, PWR IN 4.8 - 24V
Logical working current ss: ≤ 36mA
Drive working current Io: ≤ 2A
Maximum power dissipation: 25W (T= 75°C)
Control signal input electric level:
High: 2.3V≤ Vin ≤ 5V
Low: -0.3 V ≤ Vin ≤ 15V
Operating temperature: -25°C ~ +130°C
Feature:
1.There is L298P motor driver chip on the board so that you can use digit IO interface(D .D10. D11. D12) without cumbersome wiring connection
2.Onboard buzzer (D4), you can set the astern alarm ringtone
3.Convenient motor interface can be two routes motor output
4.Two-way bluetooth interface requires no wiring and you can plug directly
5.It has seven digital interface that are not occupied(including D 2 , D 3 , D 5 , D 6 , D 7 , D 9 , D)
6.It has six analog interfaces(A0, A1, A2, A3, A4, A5)
7.It has indicator for forward and backward changing direction

Package includes:
1 x L298P Motor Driver
