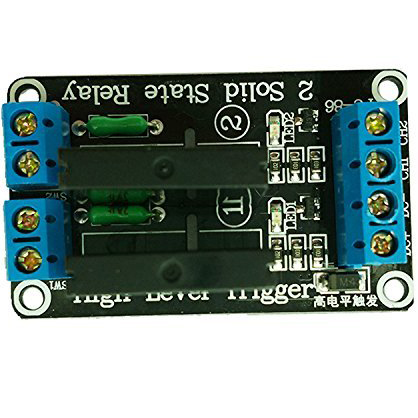

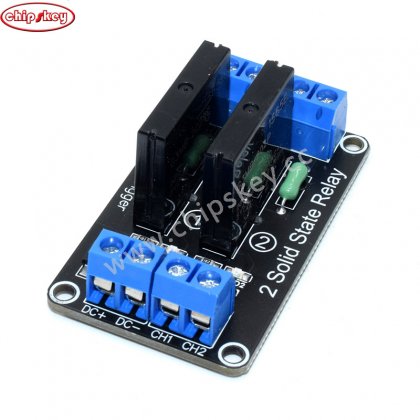

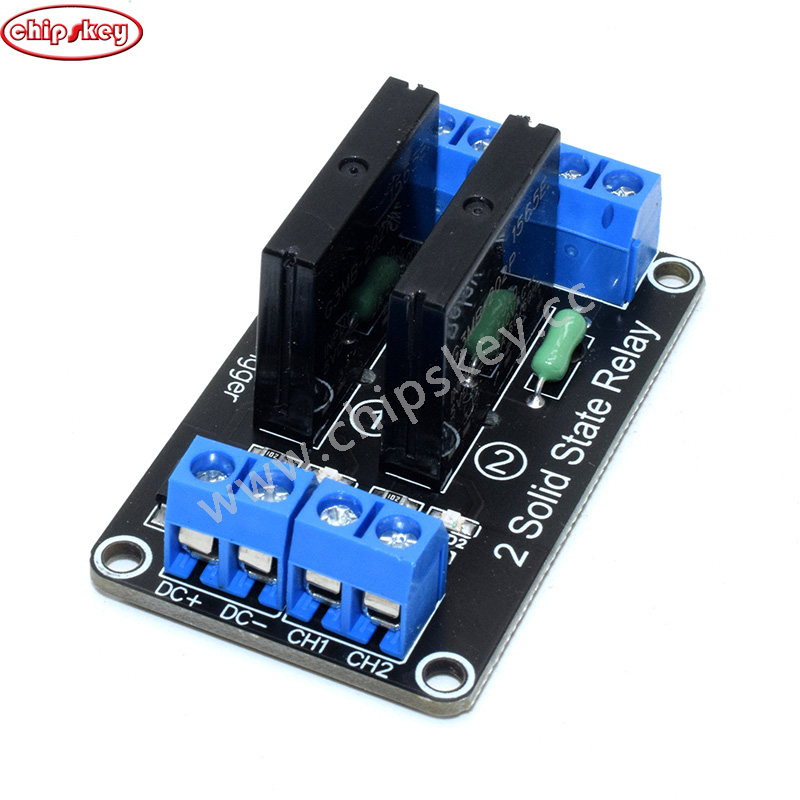

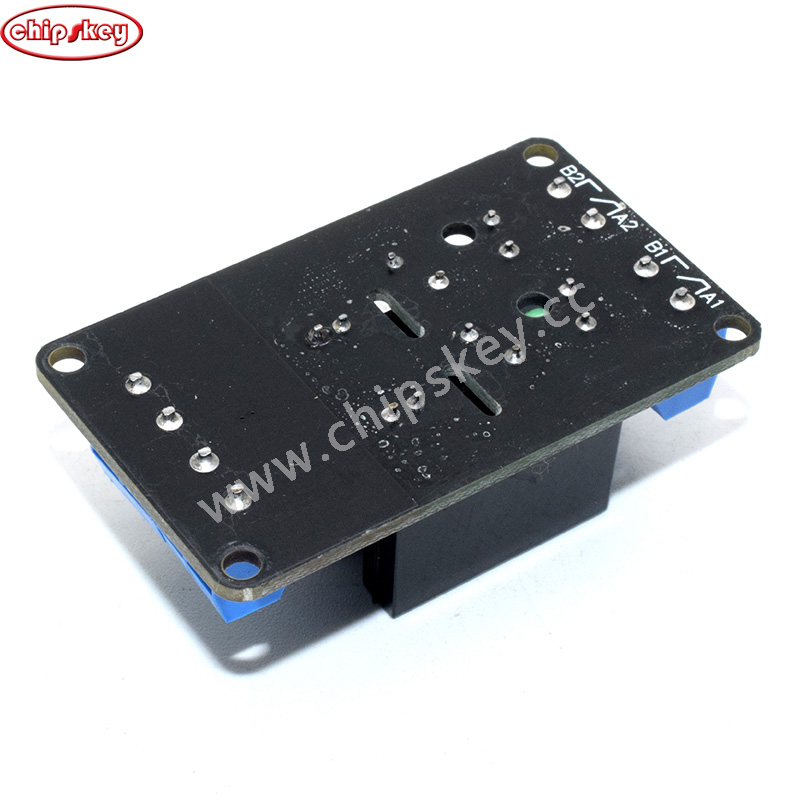

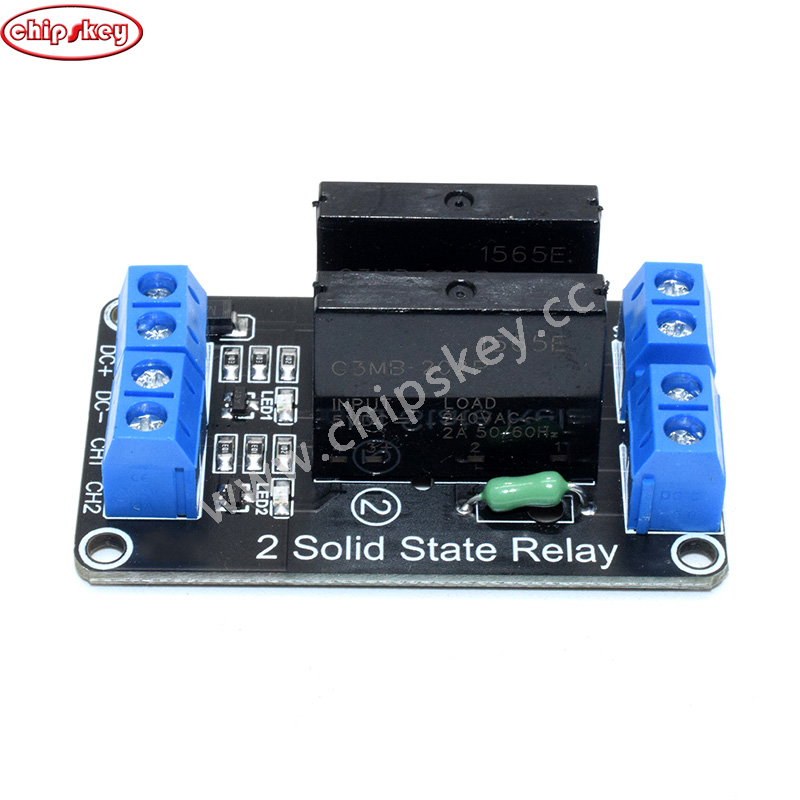

5V 2 Channel SSR Solid-State Relay Low Level Trigger With fuse Stable 240V 2A

Product features Working Voltage: DC 5V Working Current: 160mA Input Control Voltage: 0-2.5V (low level, OFF), 3.3-5V (high level, ON) Compatible Load: AC 100-240V 2A Module Size: 55 X 33 X 25mm / 2.17 X 1.30 X 0.98inch (L * W * H) This is 2CH SSR board equipped with OMRON solid state relays, fast response and quiet better performance than magnetic-latched relay for AC100-240V 2A loads power control. On-board 240V 2A pico fuse at output end, high-level trigger can be directly controlled by the power positive or the microcontroller I / O port perfect Raspberry Pi projects Specifications: Working Voltage: DC 5V Working Current: 160mA Input Control Voltage: 0-2.5V (low level, OFF), 3.3-5V (high level, ON) Compatible Load: AC 100-240V 2A Module Size: 55 X 33 X 25mm / 2.17 X 1.30 X 0.98inch (L * W * H) Package Included: 1 x 5V 2 Channel Solid State Relay Module
