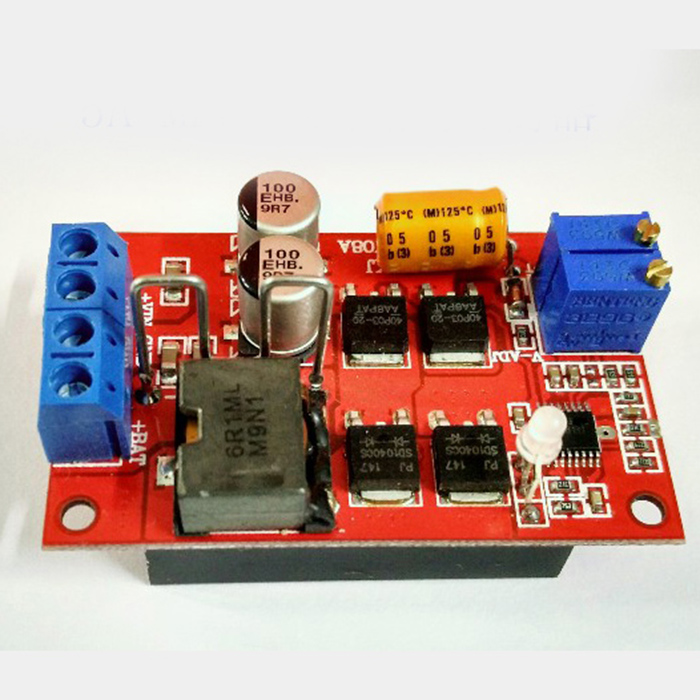

5A solar charging board MPPT solar panel controller

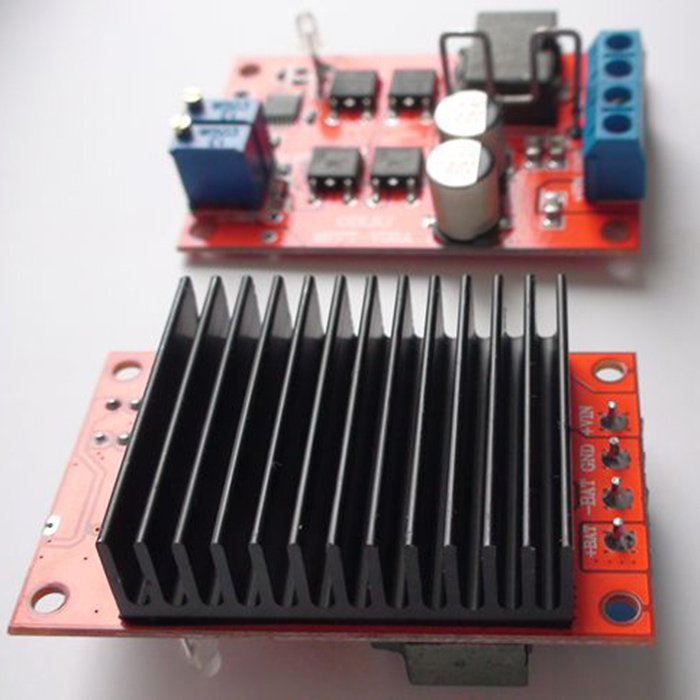

Special thickened radiator, kill similar products! Power up to hand!

Scope of application: 1w-100W 9V-28V Suitable for 9V 12V 18V 24V solar panels for battery, nickel cadmium, nickel hydride, lithium battery (battery pack) charging, wind turbines, solar street lights, etc.
Both the input and output terminals use high-grade switching power supply dedicated high-frequency low-resistance electrolytic capacitors (LOW ESR) to ensure the output ripple. Can effectively filter out burrs in the switching power supply.
Module parameter
Module nature: with true MPPT solar maximum power point tracking function, fully automatic intelligent charging management, low power consumption
Input voltage: DC 8-28V input DC voltage. (No input of AC power)
Output voltage: DC 5-26V stepless adjustable input For lower output voltage, please contact the owner.
?????????Can charge 6V or 12 batteries or 8.4V, 12.6V, 16.8V lithium battery
??????????????????7.2V, 10.8V, 14.4V lithium iron phosphate battery
??????????????????2-4 series lithium battery, lithium iron phosphate charging management board
?
Output current: 2A/5A There are two types of maximum charging current: A version 5A B version 2A default delivery 5A version A
Charging indicator: Yes. The fast charging red light is long, and the full red and blue lights are alternately shining. Fully automatic stop.
MPPT function: Yes. MPPT maximum power point automatic tracking function, can maximize the full use of solar charging
The lowest voltage difference: 1V (because it is a buck regulator module, the input voltage is at least 1V higher than the output)
Ultra low power consumption: yes! Ultra low dropout design for low power consumption and higher conversion efficiency, professionally adapted to solar panels
Operating temperature: industrial grade (-40 ° C to +85 ° C)
Load adjustment rate: ±1%
Voltage regulation rate: ±0.5%
Conversion efficiency: Max: 93% Peak: 95% Different lighting conditions are different.
Charging mode: fully automatic intelligent three-stage charging mode. Self-tracking solar power size automatically adjusts the charging current
No-load current: 3MA Even in the morning, the weak sunlight can be easily and automatically started, eliminating the manual switch.
Input reverse connection protection: Yes. MOS tube ultra low dropout anti-reverse protection, input reverse connection does not work.
Output reverse flow protection: Yes. Effectively prevent the electric reflux charging plate of the battery at night!
Wiring method: with terminal block
Mppt voltage: Any adjustable, different solar modules MPPT voltage is different, even mppt voltage can not be adjusted mppt solar controller, can be called mppt? Low power design. Reduce power loss! The MPPT function can effectively prevent the solar panel voltage from being dragged by the battery and charging slowly.
Note: Please adjust the output voltage in advance for the first charge and monitor the battery voltage to prevent overcharge! Do not charge unprotected lithium batteries!
Debugging method:
Step 1: Connect the solar cell, do not connect to the charged bottle, if the output has voltage, step 2. If there is no output, slowly turn the MPPT down counterclockwise until there is an output voltage.
Step 2: Turn the output voltage counterclockwise until the red and blue lights flash, then coarsely adjust the output voltage to the full cutoff voltage.

Step 3: Connect the unpowered battery and monitor the charging current at the output string ammeter to fine tune the MPPT potentiometer until the charging current is maximum.

Step 4: Connect the battery that is just full. If the blue light is turned, turn the output voltage clockwise until the red light is on. Then slowly turn down the output voltage counterclockwise until the blue light is on, then use a multimeter to determine if the cutoff voltage is correct to avoid overcharging! If the MPPT voltage value of the solar panel is known, (MPPT voltage value can directly ask the seller who sells the solar panel.)

The method of replacing the solar energy with a regulated power supply:

Step 1: Adjust the regulated power supply to the solar MPPT voltage (eg 18V)

Step 2: Connect the regulated power supply to the input terminal without charging the battery. If the output voltage is available, increase the MPPT clockwise until there is no voltage output. Then slowly turn the MPPT down counterclockwise until it has just the output voltage.

Step 3: Turn the output voltage counterclockwise until the red and blue lights flash, then coarsely adjust the output voltage to the full cutoff voltage.

Step 4: Connect the battery that is just full. If the blue light is on, turn the output voltage clockwise until the red light is on. Then slowly turn down the output voltage counterclockwise until the blue light is on, then use a multimeter to determine if the cutoff voltage is correct to avoid overcharging!

Audley Technology independently designs and develops advanced MPPT solar power tracking technology
2A/5A high current intelligent turbulence, constant current, constant voltage charging management board, full automatic stop, sleep at night, self-starting during the day, to achieve unattended and fully intelligent management.
Solar cell maximum power point tracking (MPPT)
Solar cell maximum power point tracking (MPPT) is to ensure that the photovoltaic cell assembly always outputs maximum power when the sun's light intensity changes, in order to achieve full and efficient use of solar energy. Under normal circumstances, the output charging current is automatically adjusted according to the solar lighting conditions, so that the solar panel output power can always be maintained at the maximum power point, and the product of the output voltage and the charging current (output power) is maximized.
?

Charging management board features:

1. The maximum power point tracking of the solar cell, the output current is greater than the solar panel current, the real ultra-high efficiency MPPT, support 8-28V, 100W solar high current charging, it is recommended that each solar panel be equipped with one module) can expand the charging current in parallel with multiple modules
2. Can adjust the output voltage arbitrarily, CC-CW automatic control (can support single or multi-cell lithium battery or lithium iron phosphate or lead acid battery, high power LED, etc.)
3. Battery for complete charge management
4. PWM switching frequency: 300KHz
5. Constant current charging current is set by external resistor (default 5000mA/2000MA)
6. Trickle charging of deeply discharged batteries
7. Dual indication of charging status and charging end status (red light on charging/full blue light/red light flashing blue light always indicates no battery is connected)
8. Low-power soft-start function
?9. Adopt imported high frequency low conduction internal resistance double MOS tube, 10A high current double diode, high efficiency flat high power inductor, Kang copper current detection resistor, anti-reverse protection of ultra low dropout, no work, no reverse connection Damage to the charging pad. Quality Assurance!
