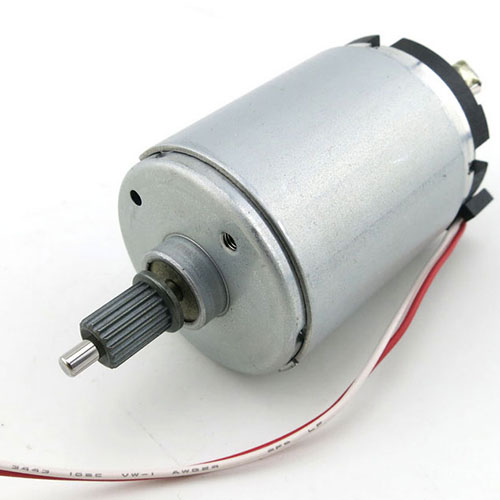

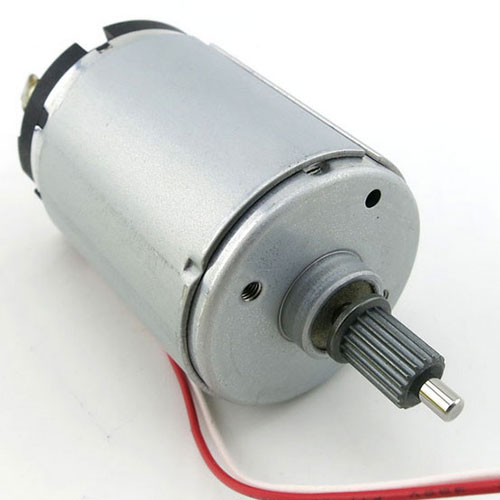

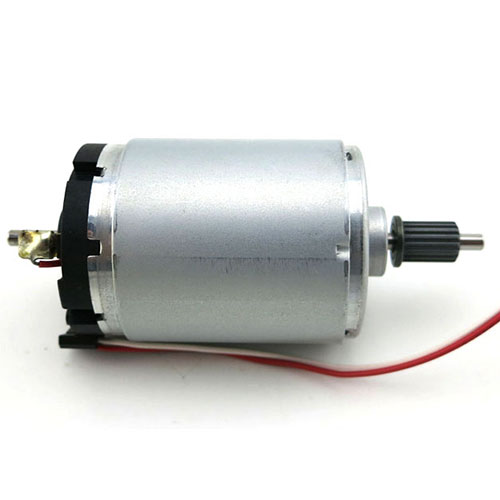

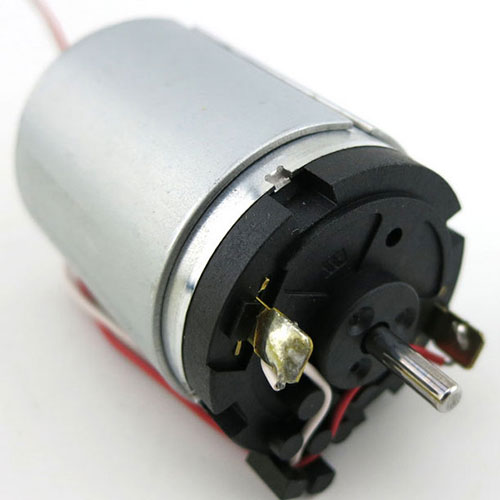

545 High Speed Motor Cars

545 High Speed Motor Cars
All-new, highly efficient DC motor in Japan, with a metal pulleys with metal protective shell, the workmanship is very fine, high work efficiency. Above with a pulley, if not removed, there is still sufficient length shaft mounted gear.
[] Voltage range: DC 3-24V
[] Motor diameter: 35.5mm
] Fuselage length: 51mm
[] Motor shaft length: 18mm
[] Motor shaft diameter: about 3.17mm
[] Motor weight: about 196.68g
[Metal] Pulley Teeth: 17 teeth

[Other features]: exquisite workmanship, torque, good power generation efficiency, durability and long life brushless motor
(1) gently turn the motor shaft, it can issue a current, can be lit with dozens of LED diode light string can be driven small coreless motor rotation.
(2) in the summer midday intense direct sunlight, 3v100ma solar panels can be driven by the motor, the motor efficiency is high enough to see this on the current consumption is very low.

12V voltage test: No-load current 100ma, stall current 1.52A, no-load speed 2100 rpm
24V voltage test: No-load current 110ma, stall current is very large, no-load speed of 5000 revolutions per minute
24v, the stall torque, you can do a mini table saw
