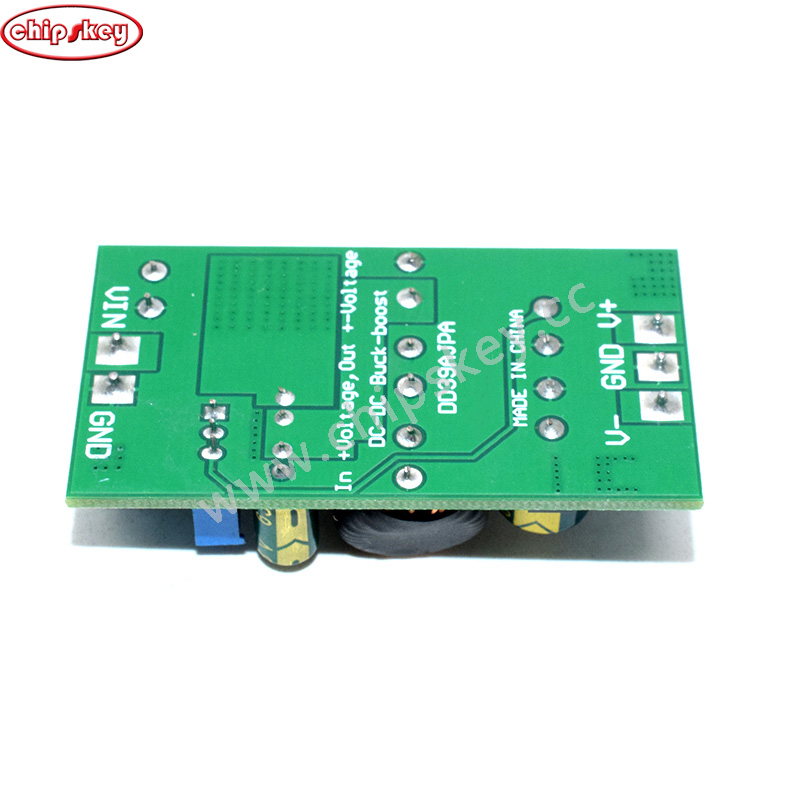

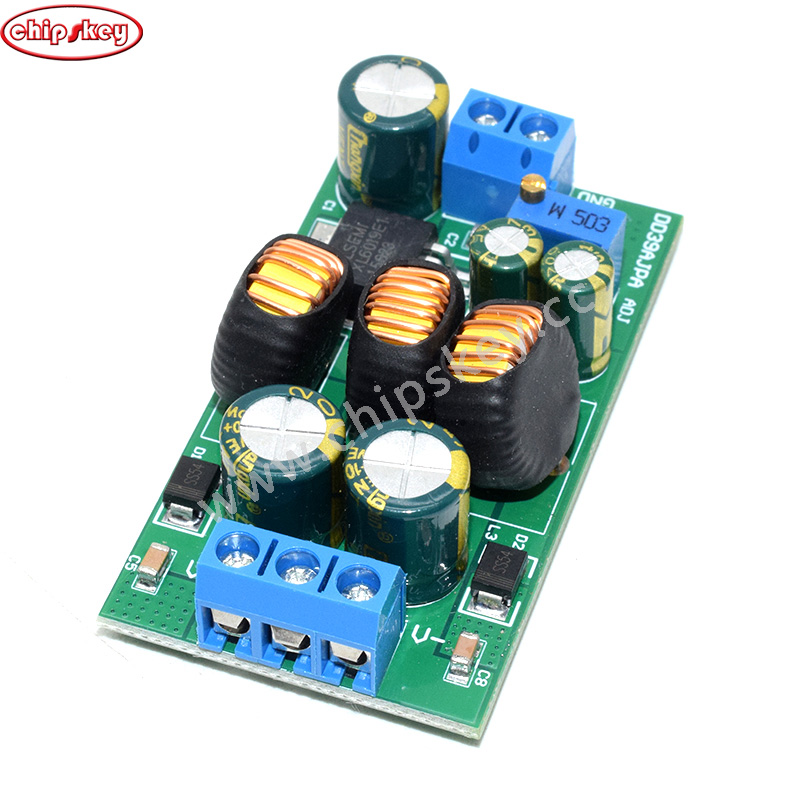

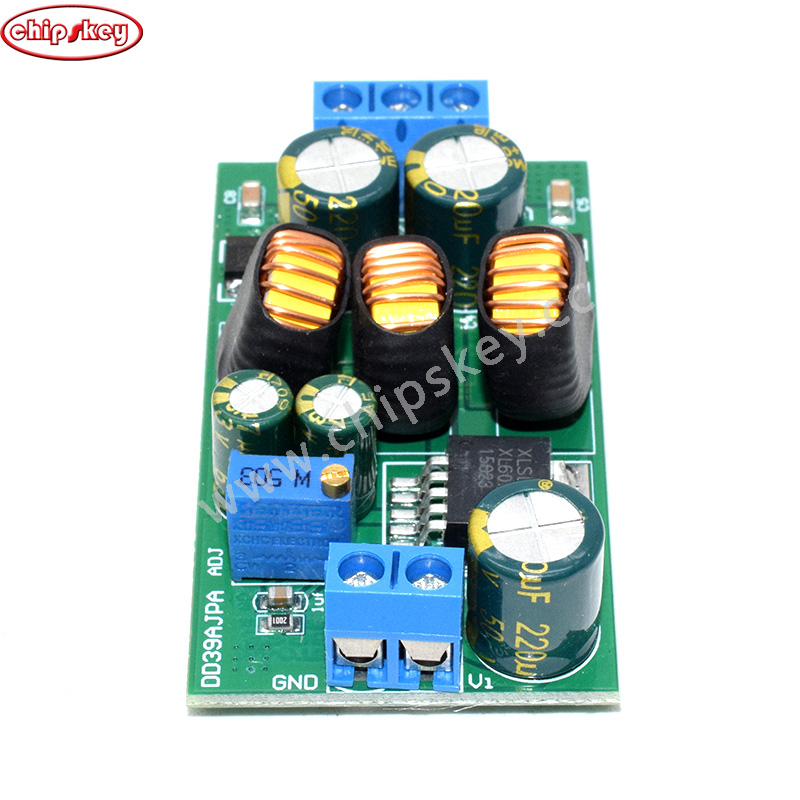

5-30V to ±5V±6V±9V±10V±12V±15V±24 Boost-Buck DD39AJPA
Product Description: Input DC3.6-30V, output DC ± 3-30V adjustable Maximum output power: 20W (output power varies depending on the situation, please refer to the minimum table for details) Maximum conversion efficiency: 68-89% Static working current: 2.5mA Size: 60 x 34 x 15mm Weight: 33g (with terminals), 29g (without terminals) Typical applications: ADC/DAC/Transport Amplifier Power Supply RS232 RS485 RS422 bus power supply Low power audio power supply Car audio power supply Instrument power supply LCD backlight power supply
