4A 25W KZ35 constant current electronic load power aging fast charge tester triggers decoy discharge capacity test
Features:
This product can be used as a normal electronic load or as a USB electronic load.
QC2.0/QC3.0/AFC/FCP fast charge protocol, trigger output 5V/9V/12V/20V and other voltages; LCD display, friendly human-computer interface and excellent performance indicators to meet diversified Test requirements.
Load Function:
1. Can display current A, voltage V, power W, capacity Ah, and discharge time;
2. Has a sound protection mechanism;
3. Automatic calculation of discharge capacity and discharge time;
4. Set maximum discharge capacity (OAH) and maximum discharge time (OHP); (to achieve unattended power aging test)
5. Intelligent temperature control fan, when the power is greater than 10W or the temperature is greater than 40 °C, the fan automatically starts;
6. Rotary coded potentiometer can accurately adjust the current to 0.01A, the current can be locked to prevent misoperation;
7. It is possible to set the load to resume normal operation (REC) after the protection mechanism is released.
8. Data group function: You can choose whether to add one-stage capacity value and running time.
Trigger/Cheat Function:
1. Trigger function:
The charger can be used for QC2.0, QC3.0, AFC 9V, FCP, and multiple fast charging modes for deception triggering.
2. Fast charge support automatic detection function:
Press and hold the trigger button TRG to detect the charger's support for the fast charge mode.
3. Power-on automatic trigger fast charge function:
Power-on automatically triggers fast charge (setting in AUTO: ON state), which is suitable for batch testing of aging chargers.
Specification:
Types: KZ25
Rated operating voltage: DC4.0-25.0V (with anti-reverse protection, reverse connection does not burn)
Maximum discharge power: 25W
Rated operating current: 0.03-4.00A
Maximum fan speed: With oil bearing bearing wind 5800±10%RPM,
Fast charge trigger mode: QC2.0 5V 9V 12V 20V, QC3.0, AFC9V, FCP
Constant current accuracy: ±(1%+3 words)
Voltage accuracy: ±(0.5%+3 words)
Cooling method: Intelligent temperature control fan + all aluminum heat sink
Working environment temperature: -20-40°C
Expansion interface: Micro USB interface, Type-C interface
Overvoltage protection (OVP):Default 5.10A (can be set by yourself)
Over power protection (OPP): Default 25.5W (can be set by yourself)
Undervoltage protection (LVP): Default 4.0V (can be set by yourself)
Over temperature protection (OTP): Default 80°C or so (cannot be set)

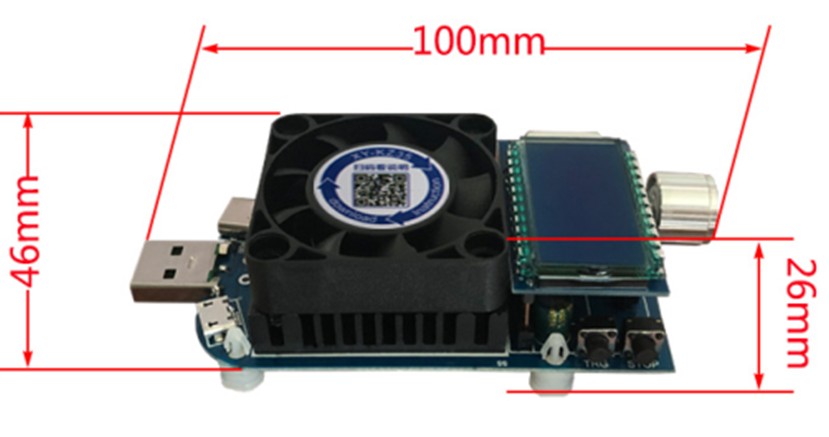

Dimensions: 4.6x10cm/1.81x3.94inch
