45mm metal N20 excavator electric push rod 6V
1. All metal shell for better product protection
2. The product has two motor specifications, DC6V (also applicable to 4.5-7.0V) and DC12V (also applicable to 9.5-13.0V), for users
You can choose on your own
3. When the motor is working, please do not exceed the voltage limit, otherwise it may cause product abnormalities

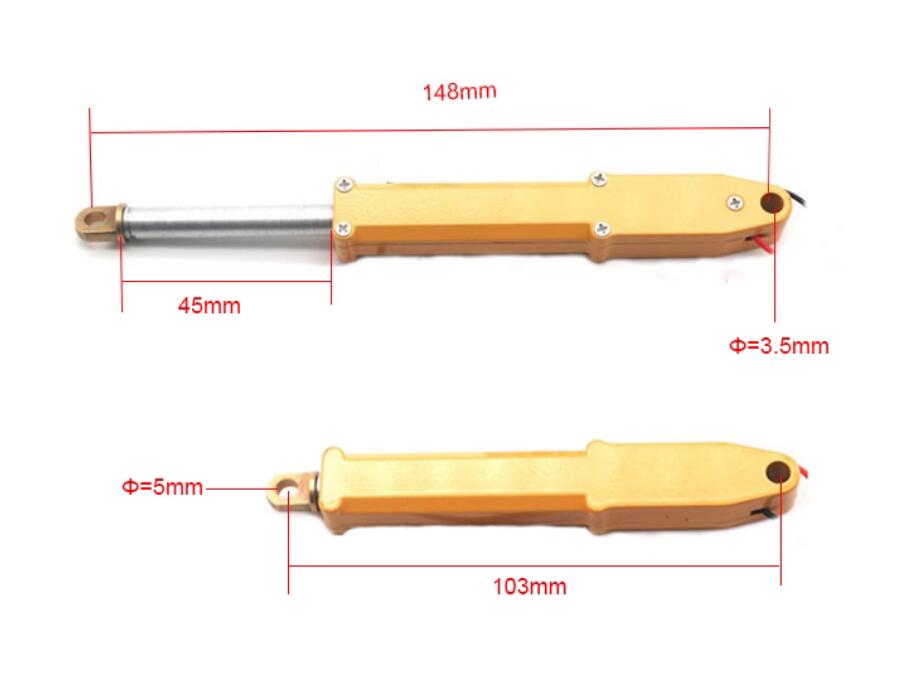

4. Working stroke 45mm, speed approximately 5mm/s
The rated torque of the 6V model is 0.15-0.2Kg/cm, and the locked rotor torque is 1.2-1.6Kg/cm;
The 12V model has a rated torque of 0.3-0.4kg/cm and a locked rotor torque of 3.2-4.0Kg/cm;
5. The product comes with a forward and reverse motor control and protection board (used in excavator models, directly wired for use, no control board required)
*The control board is for experienced use only. Please use it with caution as it may cause product damage and does not support returns;
*Reversing the positive and negative poles of the power supply can cause circuit damage
Control board parameters:
1) Power supply voltage 2V-10V;
2) When the input end is suspended, the motor will not malfunction;
3) No need to worry about motor stalling
