Product Introduction

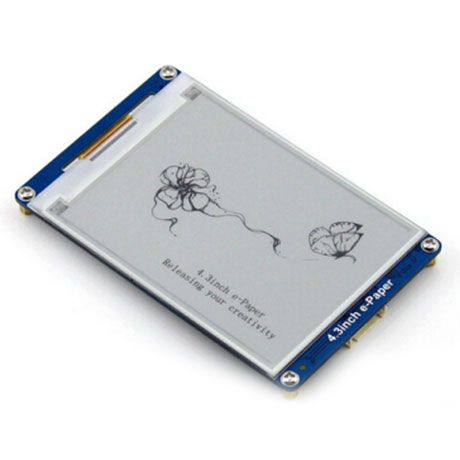

[One minute self-introduction] Im a serial electronic ink screen module, 4.3 inches, with a resolution of 800 × 600, built in the English character, low power consumption. If you want to know the details of the underlying complexity ink screen, do not focus on graphics, text and pictures show the specific algorithm, then Im born for you. A serial port can be achieved all the features you freed from the complex details, release your creativity. [I] features Easy to use, only need a serial port can be completed display functions, including drawing geometry and display text and image Built-in font support GBK Chinese character dot matrix 32,48,64; 32,48,64 dot matrix font English Built-in 128MB NandFlash, font and image data can be stored to an external TF card, can also be introduced into the NandFlash 4 gray scale display resolution up to 800 × 600 Available on a custom baud rate, power-on default 115200 System supply voltage from 3.3V to 5V, logic-level compatible Low power consumption, the system sleep current of less than 5mA Supporting PC software, direct use of the computer display can be completed [My Apps] E-book reader, shopping malls POS, shelf labels, industrial instrumentation display [Interfaces] VCC: 3.3V ~ 5.5V GND: GND DOUT: serial data transmission DIN: receiving data from serial WAKE_UP: external wake-up pin RST: External reset pin
