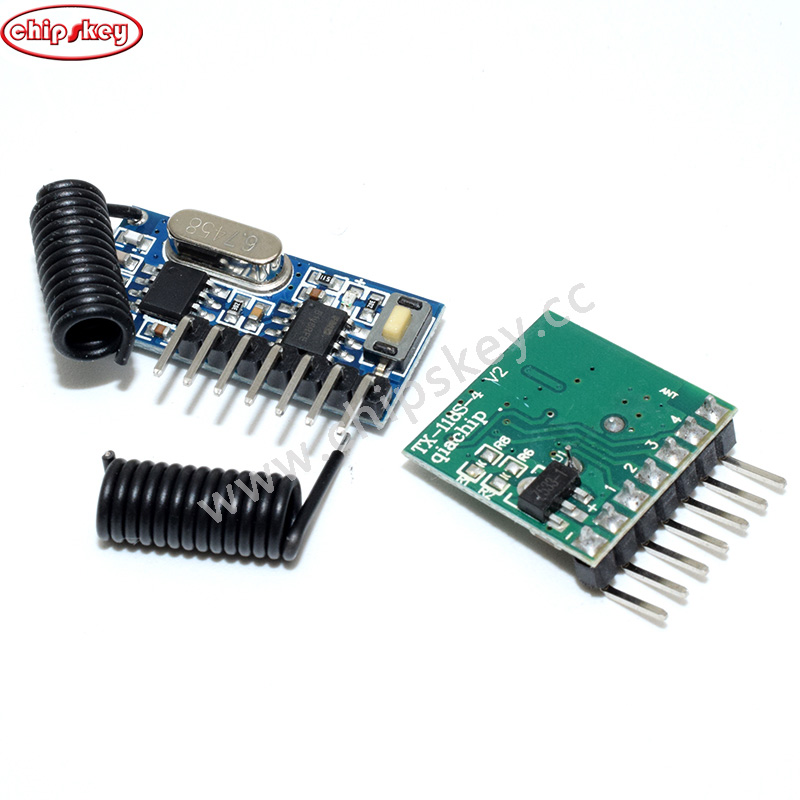

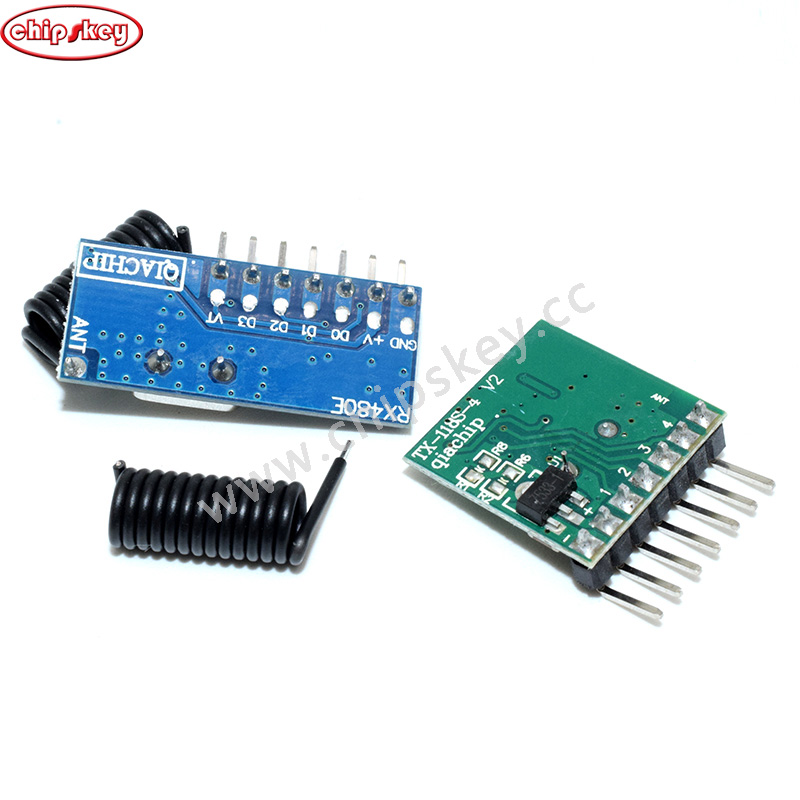

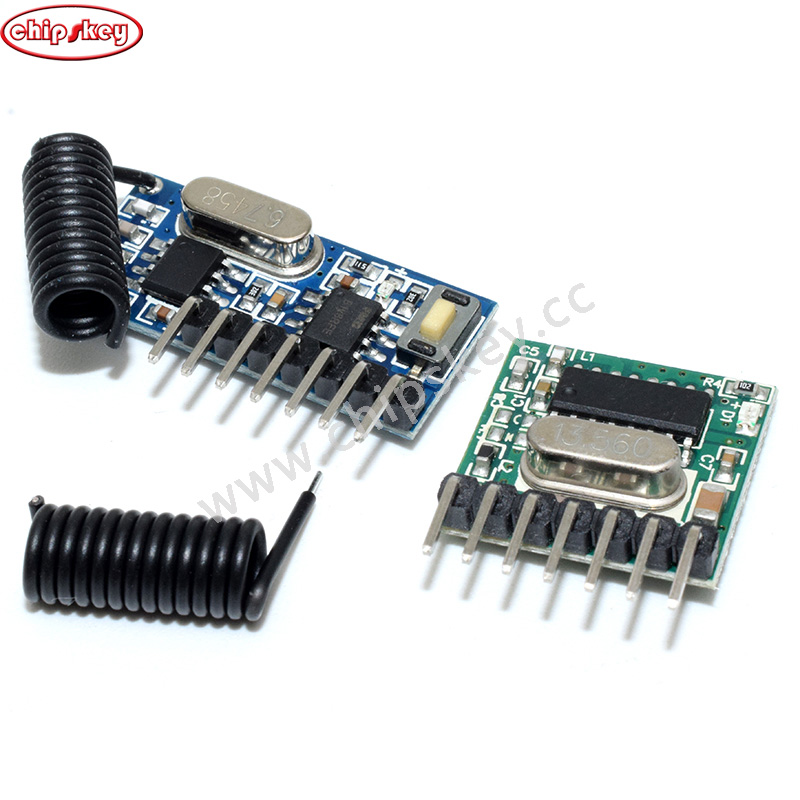

433 Mhz Wireless Receiver and Transmitter Remote Control Learning Code 1527 Decoding Module 4 Ch output With Learning Button

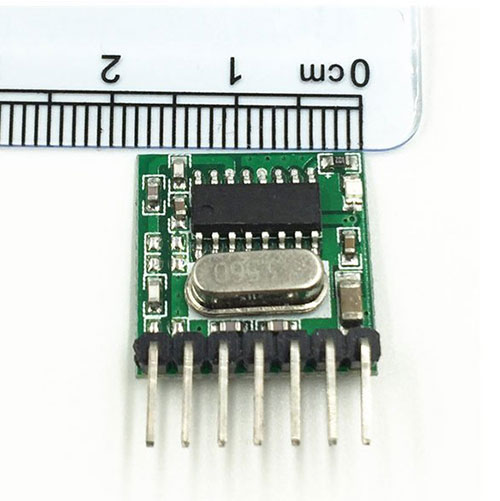

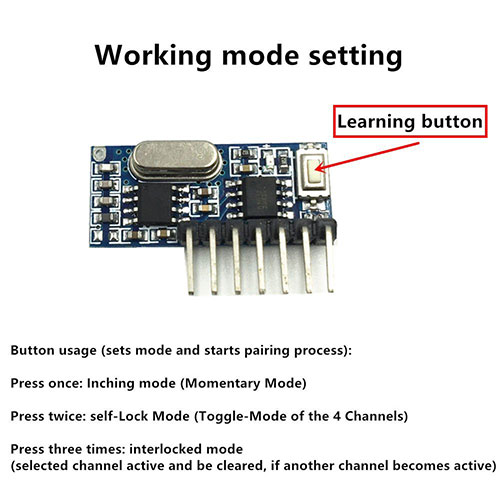

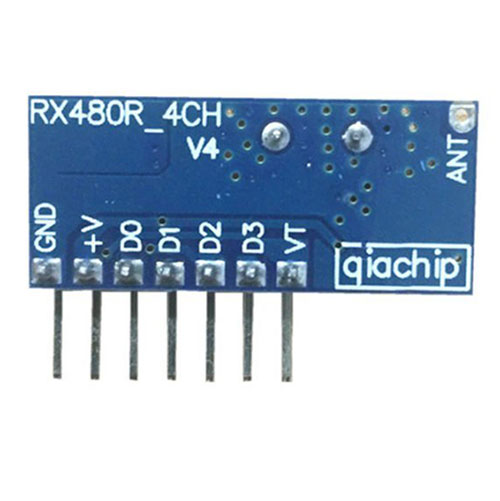

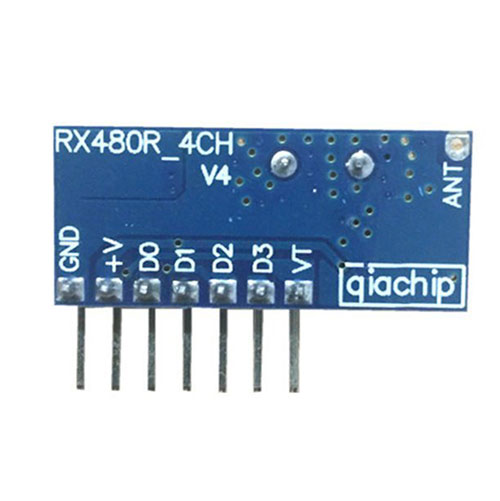

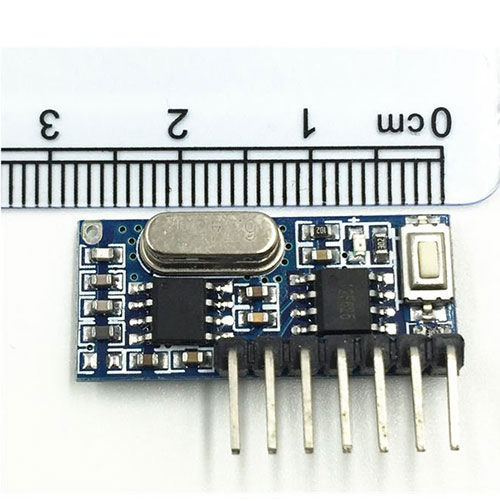

product description Style: Transmitter and receiver kit Transmit power: 11dbm Emission current: 10MA launch Rate: up to 10KB / S Working voltage: DC 3V-24V Each module has a unique ID address code. The four key codes for all modules K1-K4 are the same. RX480-E4 Working voltage: DC3.3 ~ 5V Quiescent current: ≤5mA Output current: 10 mA Working frequency: 433MHz Receiving sensitivity: -108dB Operating temperature: -25 ~ 75 Operating modes: instantaneous mode, self-locking (4-channel switching mode), interlocking Output: 4 CMOS level signal corresponding remote ABCD 4 buttons. Pins instruction GND: Ground or negative + V: DC3.3 ~ 5V input D0: data output D1: data output D2: data output D3: data output VT: output [How to Match Transmitters and Receivers] 1. Delete Existing Data: Press Learning Button (on receiver) 8 times. Response: LED flashes 7 times. 2. Learn the remote code: Press the Learn button (on the receiver) once, twice or three times (see below). LED lights up: learning mode is activated. Press any button on the remote control. LED flashes three times: learning completed successfully. 3. Test: After the above operation, the receiver board can be controlled by the remote control. More transmitters with different IDs can be learned and stored additionally, starting with step 2 . There can be different modes of blending. Button to use (set mode and start pairing process): Press once: Jog mode (momentary mode) Press twice: Self-locking mode (4-channel switching mode) Press three times: Interlock mode (selected channel activated and cleared, if another channel became active)
