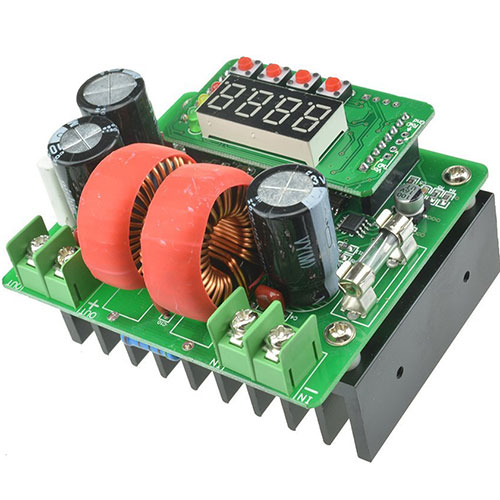

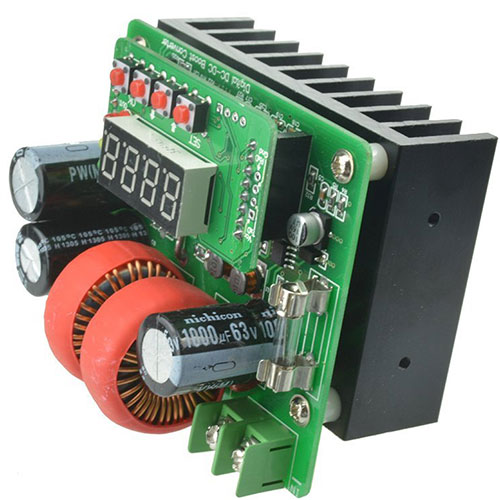

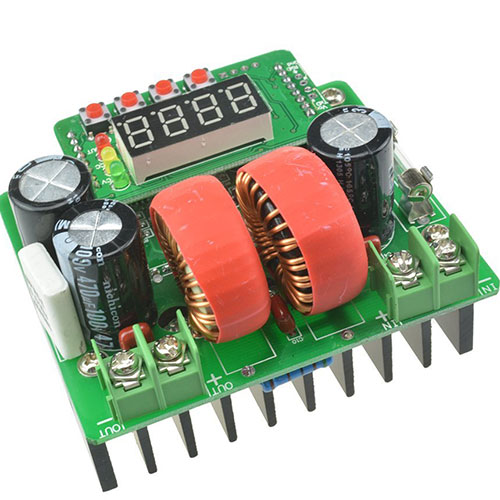

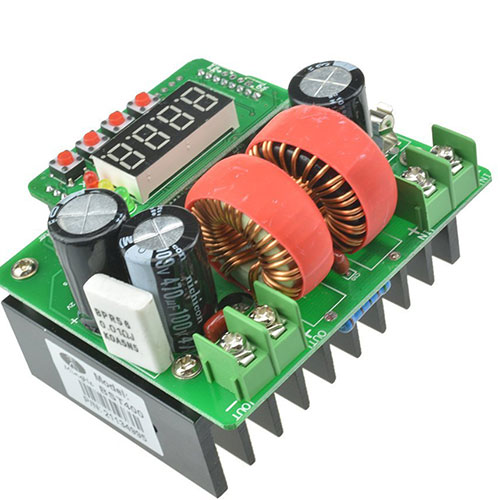

400W Digital DC to DC Constant Current Voltage CNC Boost Module

product description
Advanced Microprocessor
Use buttons to precisely regulate the output voltage and current
4 high-brightness LED, real-time display output voltage and current, you can manually
Switch display, you can also set the automatic rotation
description:

Input voltage: 6V-40V

Input current: 15A (max)

Output voltage: 8V -80V (adjustable)

Output power: 400W (max)

Output current: the maximum output current 10A (adjustable)

Output Power: Effective Power P = Input Voltage V * 10A

Conversion Efficiency: Up to 95% (Input Voltage, Current; Effect of Output Voltage and Current on Conversion Efficiency)

Short circuit protection: fuse

Size: 85 * 75 * 64mm

Weight: 295 grams

application:

1.DIY output adjustable power supply, simply enter the access 6v, 12V.24v.36v power supply or battery can (14V-80V) free continuous adjustment, but the output voltage can not be lower than the input voltage.

2 universal car notebook power. Input connected to the 12V power supply, the output voltage can be adjusted to notebook need to work.

3. 12V power charger is higher than 12V battery charging, for example, 24V battery and charging current can be adjusted.

4. For the supply of electronic equipment, as long as the voltage regulator to achieve the required voltage and current does not exceed the rated current is normal.
