4000W Imported High-power Thyristor Electronic Regulator Dimming Speed Thermostat With The Insurance Shell

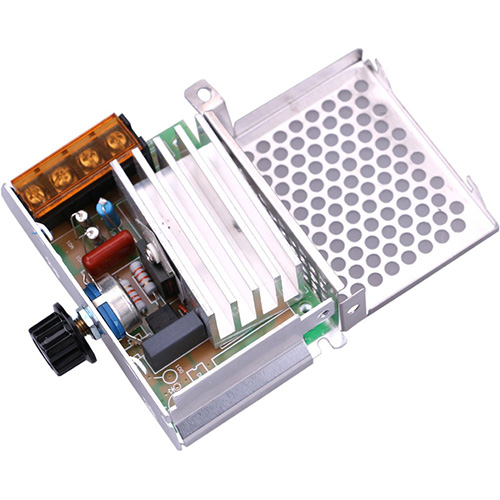

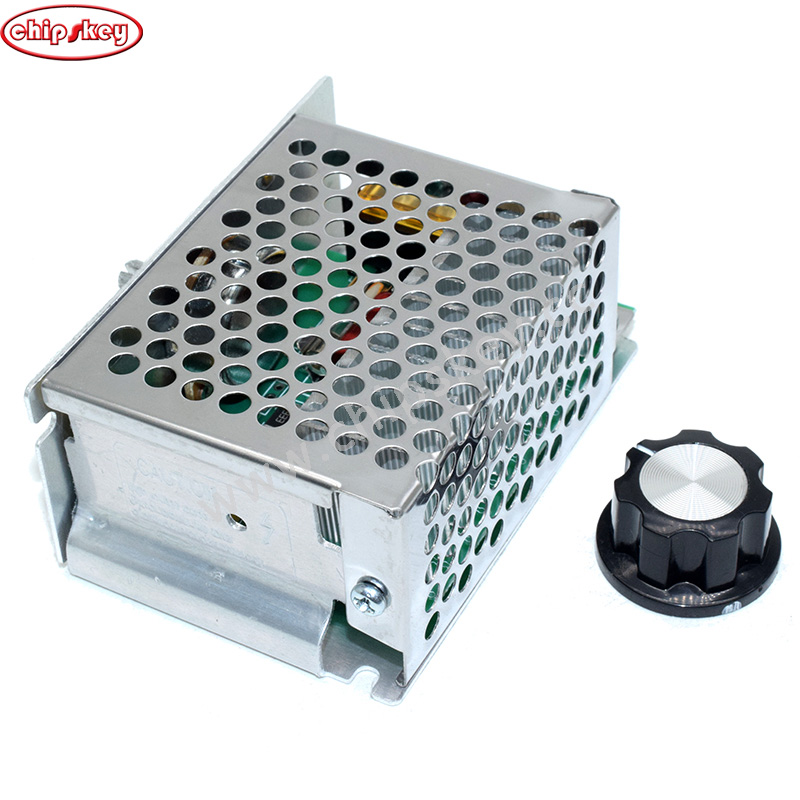

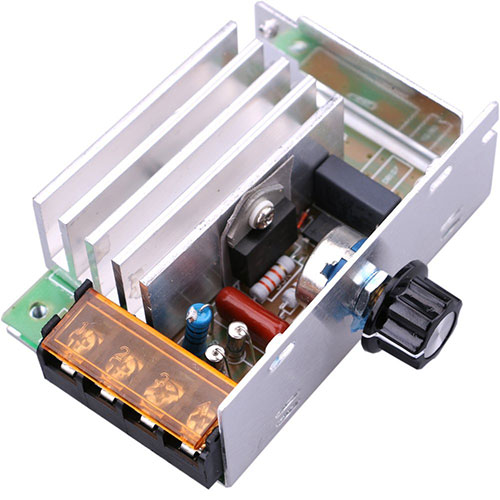

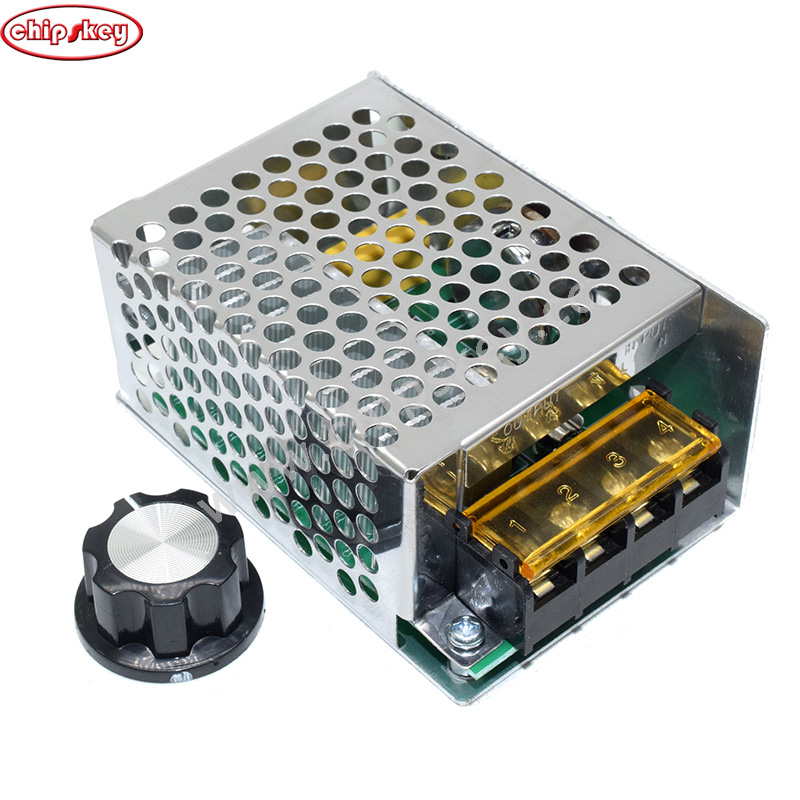

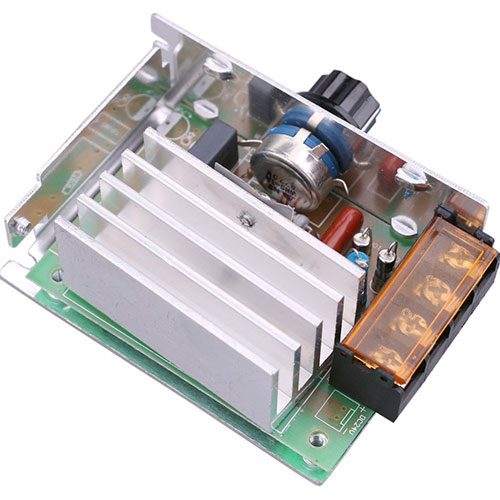

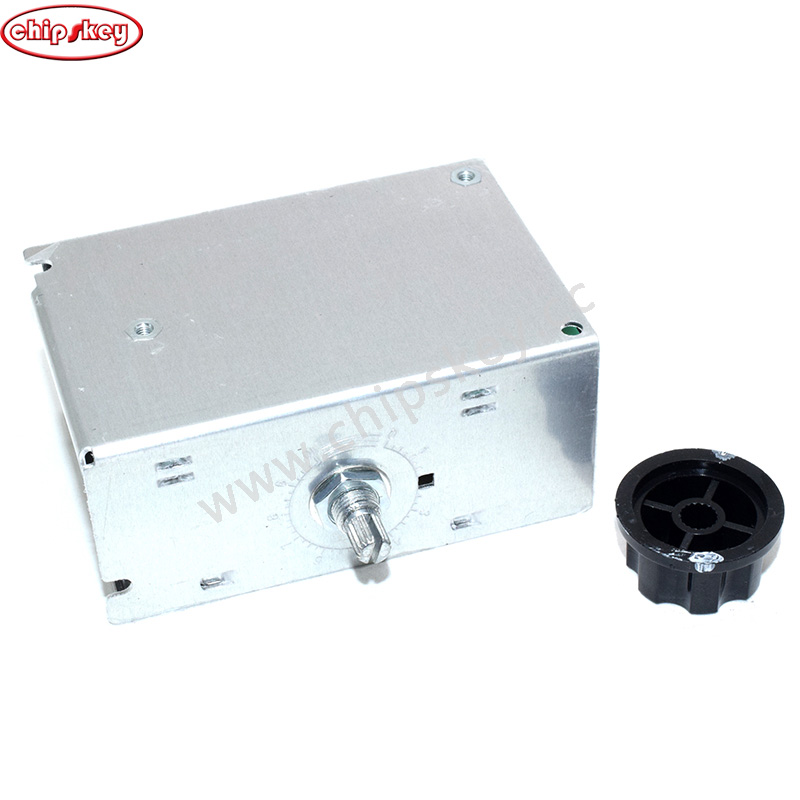

product description Size: AC110V 4000W parameter: Working voltage: AC 110V Maximum power: 4000W (connection resistance load) Voltage regulation: AC 0V - 110V adjustable Size: (shell) length 91x wide 59mmx high 34MM usage: This product is connected 110V AC input, the output is connected to wires or appliances, Rotary potentiometer rotary rod, Can play speed, pressure, temperature control effect Applications: The use of the product of the new two-way high-power SCR, Because the current maximum design up to 20 A A good solution to cooling the wire in the situation Resistance is too small, leading to over-current problems; Can easily adjust the output voltage 0-110V Such as: electric furnace, water heater dimming, light dimming, small motor speed, electric iron, thermostat and so on. To achieve dimming, thermostat, adjust the voltage effect. Can be used for power less than 4000W power electrical appliances Inductive or capacitive load power should be reduced, the regulator is equipped with two-way high-power thyristor potentiometer are with nuts, thick aluminum alloy shell large radiator Note: Load can not exceed the maximum power, otherwise it will burn out modules and appliances; Try to use resistive load; Inductive, capacitive load power to maintain more than half of the margin. Package includes: 1x AC 110V 4000W high-power thyristor electronic regulator product information Size: AC110V 4000W Package size 7 x 5.8 x 1.8 inches Product weight 6.4 ounces
