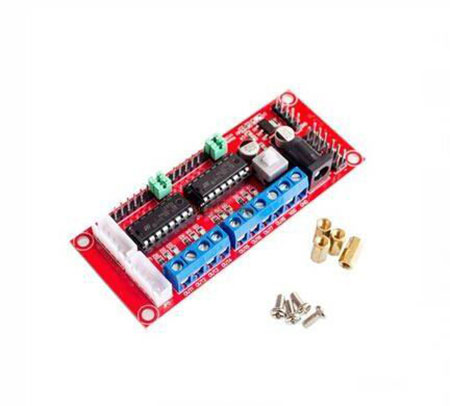

4 DC motor driver module, 4WD car, L293D module / Arduino

Description:


Drive part of the terminal power supply range Vs: +5 V to +16 V; If you need to take power from the board, the power supply range Vs: +6 V ~ +16 V

Drive part of the peak current Io: 1A

Logic part of the operating current range: 0 ~ 36mA

Control signal input voltage range (IN1 IN2 IN3 IN4IN5 IN6 IN7 IN8):

Low level: -0.3V≤Vin≤1.5V

High level: 2.3V≤Vin≤Vss

Enable signal input voltage range (EN1 EN2EN3 EN4):

Low level: -0.3≤Vin≤1.5V (control signal is invalid)

High level: 2.3V≤Vin≤Vss (control signal valid)

Maximum power consumption: 20W (temperature T = 75 ℃)

Storage temperature: -25 ℃ ~ + 130 ℃

Drive plate size: 37mm * 90mm
