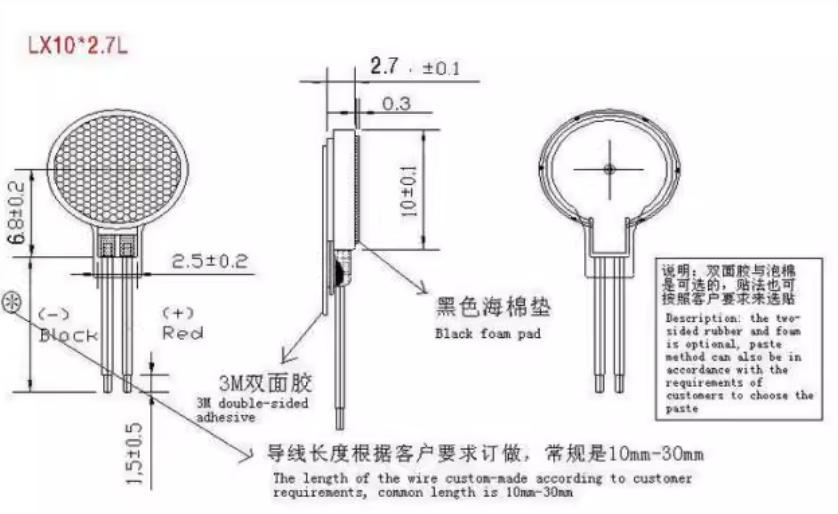

Product description Size:10x3.3mm 5 Pcs Vibrating Vibration, 2 leads.Vibration Micro-motor for cell phone. Product Name : DC Vibration Motor;Rated Voltage : DC 3V-5V Size : 10 x 3.3mm / 0.39" x 0.13" (D*H) Main Color : Silver Tone, Black, Red;Material : Metal Net Weight : 6g Package Dimensions 5 x 4 x 0.1 inches Item Weight 0.16 ounces
Reference of main technical parameters: Rated voltage 3.0V DC Operating voltage range 2.5~4.0vdc Direction of rotation Any direction Use environment -20 ℃~+60 ℃ Save environment -30 ° c~+70 ° C 12000+2500RPM Min Rated speed Rated current 70mA Max Starting current 90mA Max Starting voltage 2.3V DC Max insulation resistance 10MQ Min Terminal impedance 300 ± 15% (single phase) 600 ± 15% (dual phase)
