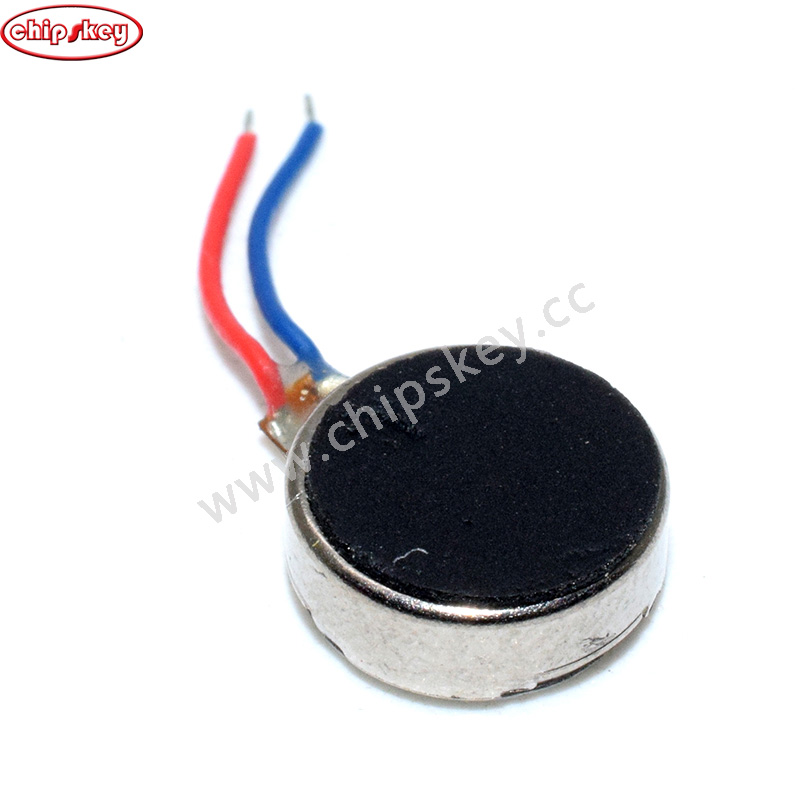

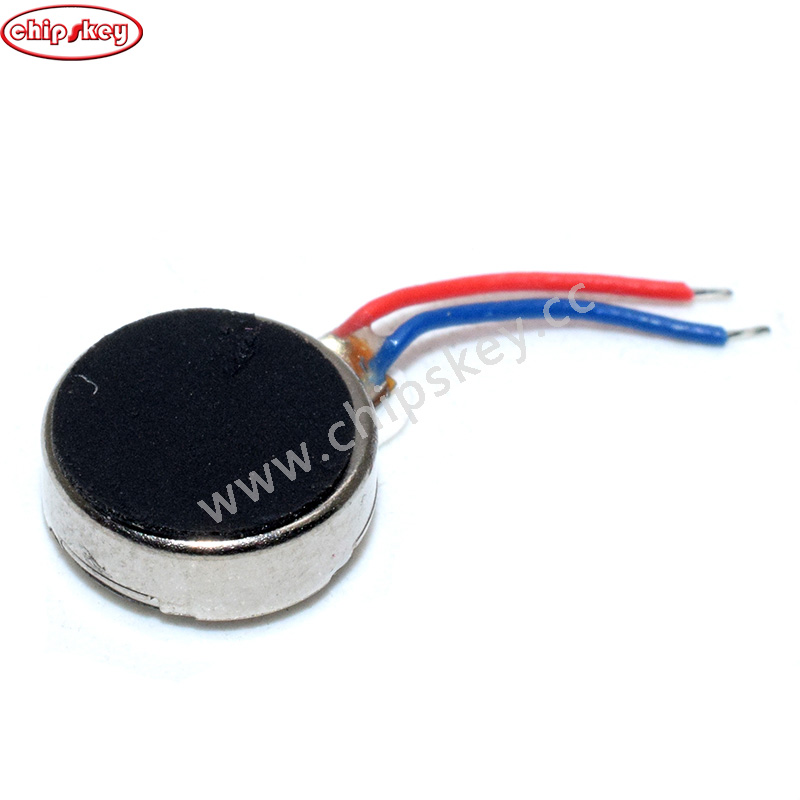

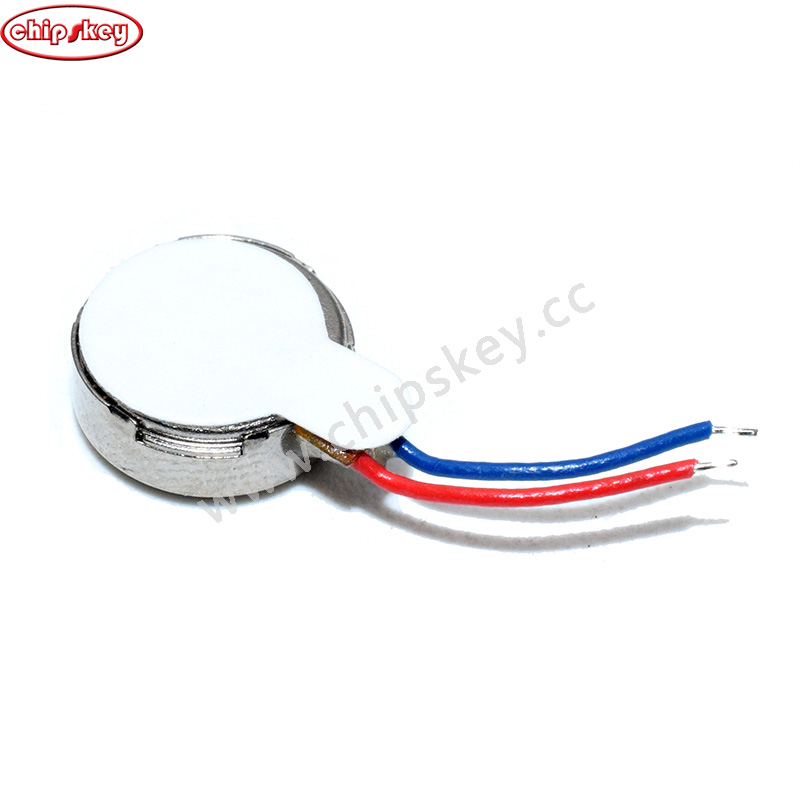

3V 0827 8mm Coin Mobile Phone Vibration Motor
Main technical parameters reference: Rated voltage 3.0V DC
Use voltage range of ： 2.5-4.0V DC
Rotation direction in any direction
Operating environment： -20 ° C~+60 ° C
Save Environment ： -30C~+70C
Rated speed： 12000+2500RPM Min
Rated current： 70mA Max
Starting current： 90mA Max
Starting voltage：2.3V DC Max
insulation resistance ：10MQ Min
Terminal impedance：300+15% (single-phase) II 60Q+15% duplex
