3G Module SIM5320E

product description

Data According to customer needs, our company has developed a 3G network module. The module is powered by an extension of any bar and suction antenna for a 5V1.5A or higher GSM antenna interface. A GPS antenna interface, GPS positioning can be achieved. The module belongs to 3G network module, the speed is far more than 2G network. The TTL serial port is compatible with 3.3 and 5V microcontrollers for computer debugging via USB-TTL or USB cable. First, SIM5320E chip profile Second, the module hardware resources Power: DC 5V 1A or 1A or more Communication Interface: A group of TTL level serial port, compatible with the 5V 3.3V microcontroller

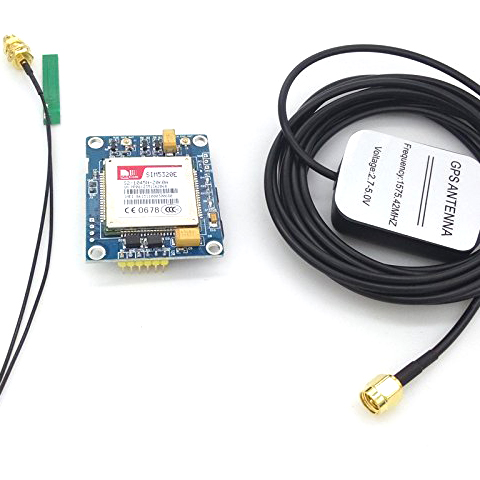

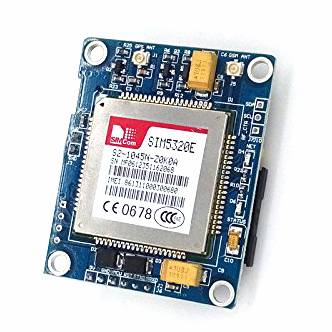

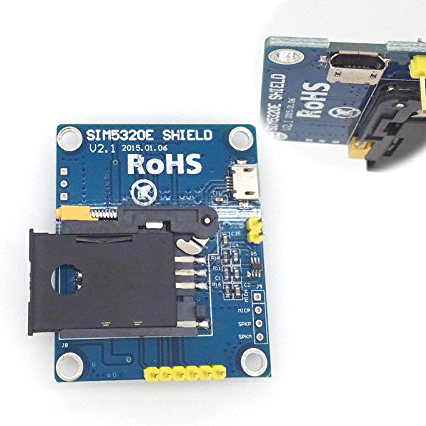

A set of USB interface, can be directly connected to the computer debugging. GPS antenna interface: a group of IPXmini antenna interface, the default access to active GPS antenna .GMS antenna interface: a group of IPXmini antenna interface, the default PCB antenna. SIM card interface: drawer SIM card interface. USB interface: micro USB interface. Voice Microphone Interface: wire, the interface is 2.54 × 4P single row needle form. Other interfaces: a group of IIC interface, a group of controllable indicator light: a 0603 indicator, used to indicate the working status of the module, a 0603 indicator to indicate the network status of the module. Third, the physical map
