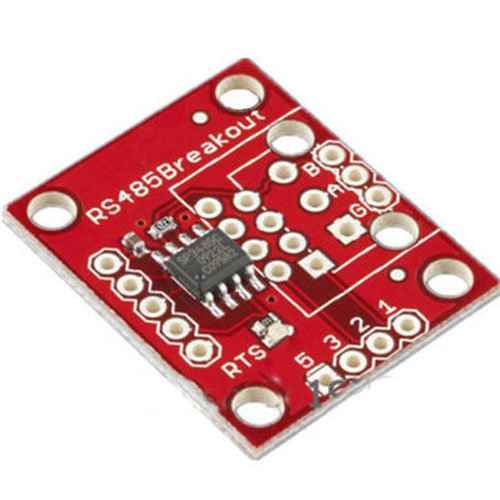

Specifications: This is the SP3485 RS-485 transceiver IC board, which converts the UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate in one direction at a time, but the maximum transfer speed can reach 10Mbps. The board consumes very little power and can operate on a single + 3.3VDC supply. , Equipped with SP3485 RS-485 transceivers and ancillary components. Operates from + 3.3V Single Supply, + 5.0V Logic Interconnect, RS-485 Input / Output Breaks Down to RJ-45 Connector, 3.5mm Screw Terminal and 0.1 "Pitch Plug Driver / Receiver Enable Connect to RTS Line, -7V to + 12V Common Mode Input Voltage Range, Up to 32 Transceivers on Serial Bus, Driver Output Short Circuit Protection, Size: 0.9x1.0 " It is brand new, good quality and high performance
