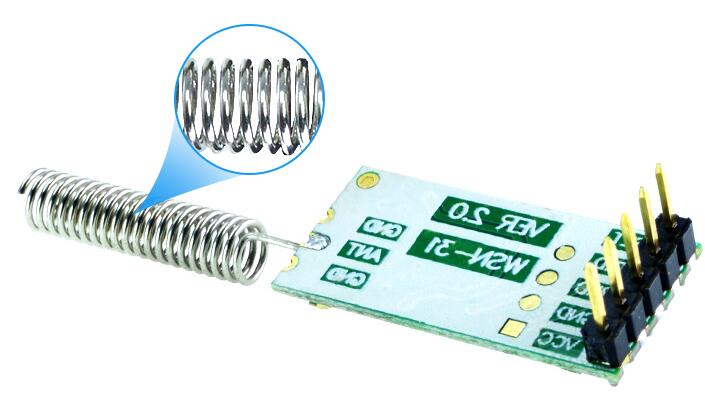

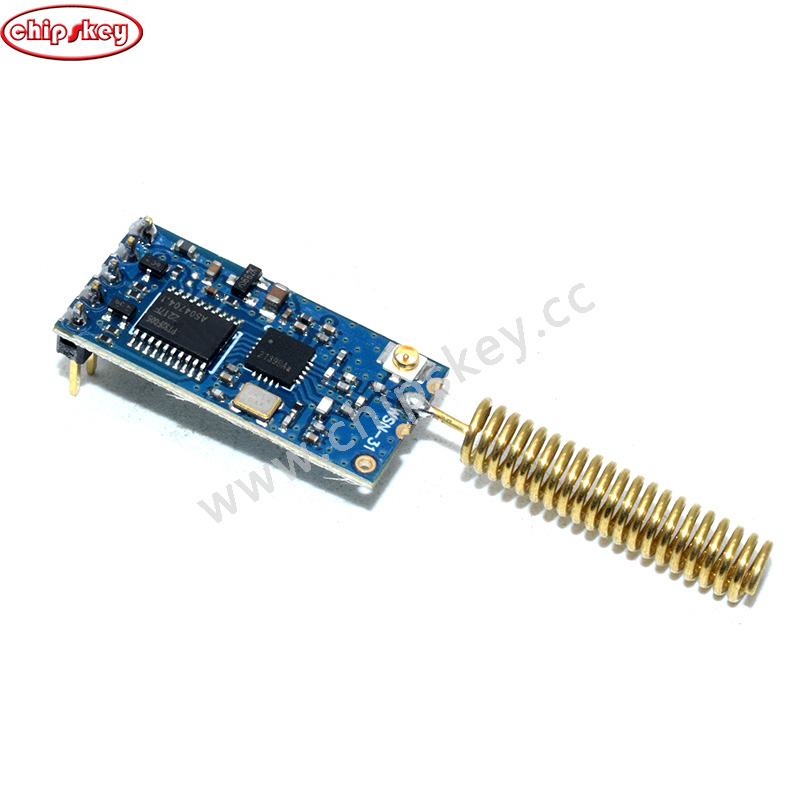

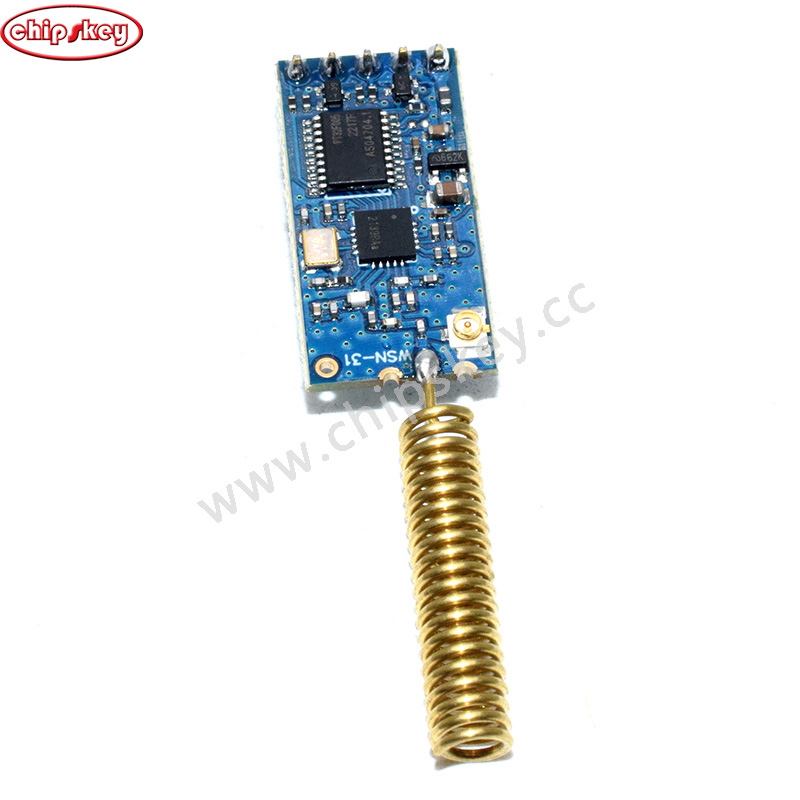

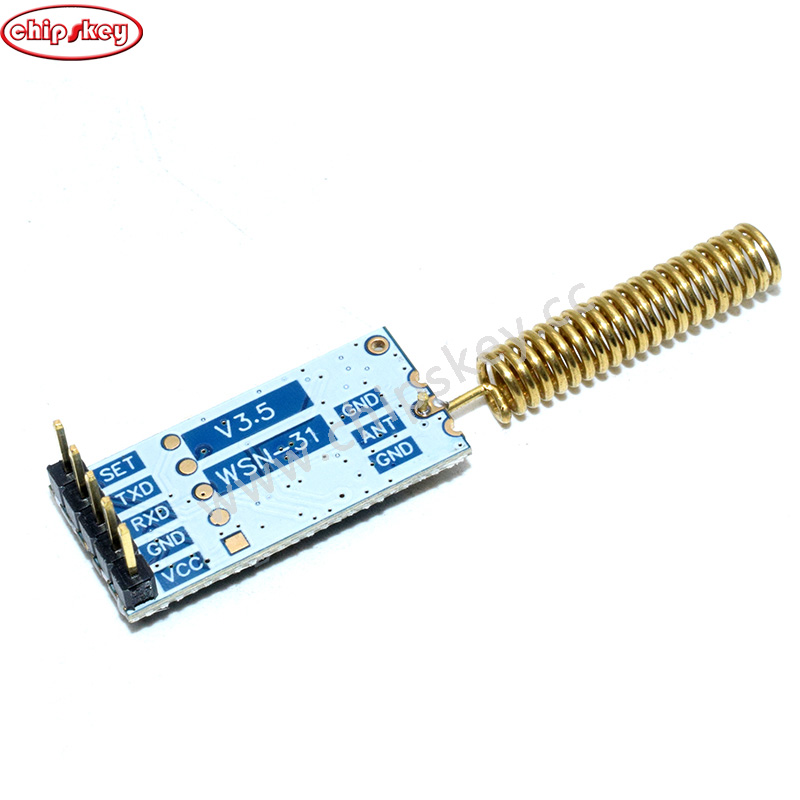

Specifications : Working voltage :1.8-3.6V Operating frequency:(Module:387-464MHZ) Instantaneous maximum working current: <30mA; Maximum transmit power: 10mW (+10dBm); Support 2-FSK, GFSK and MSK modulation; Receiver sensitivity -110dBm at 1200 baud; Minimum operating speed 1.2kbps, the highest 500kbps; Separate 64-byte RX and TX data FIFO buffer; Built-in hardware CRC error detection ensures reliable data transmission; Support RSSI signal strength detection and carrier sense function; Low power consumption; Programmable output power, for all the support frequencies up to +10 dBm; WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption; Fast frequency synthesizer with proper frequency hopping system Package Includes : *1 x CC1101 Wireless Module
