product description

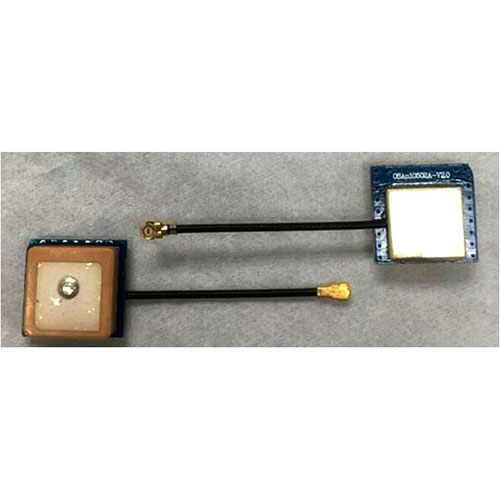

BDS / GPS receive antennas convert electromagnetic energy into satellite radio signals to receive applications where the electronics can receive signals. BDS / GPS receiving antenna is mainly used to receive GPS satellite L1 band and Beidou satellite B1 band signal. The VK2525BG-N007IPX is a high performance active GPS antenna for mobile and outdoor use. The antenna has a built-in LNA (low noise amplifier), high gain, low VSWR and strong receiving capability. The antenna has a ceramic antenna body and an active amplifier. The antenna has a compact structure and a magnet at the bottom of the antenna for installation and use. feature Industry standard 25 * 25 * 4MM high Q ceramic antenna Built-in LNA (low noise amplifier), high sensitivity Anti-interference ability Compass / GPS dual-band receiver ? Product Features 2. GPS frequency: 1575.42 ± 5MHz 3. Compass frequency: 1561.098 ± 5MHz Standing wave ratio : ≤ 1.35 Gain: ≥ 33.0dB6 Impedance: 50 ± 10Ω7 Working current: ≤ 9mA 3.3V 8. Voltage range: 1.4-3.6V 9. Operating temperature: -40 ℃ ~ +80 ℃ 10. Overall dimensions: 25 * 25 * 8mm Thread length: 75mm
