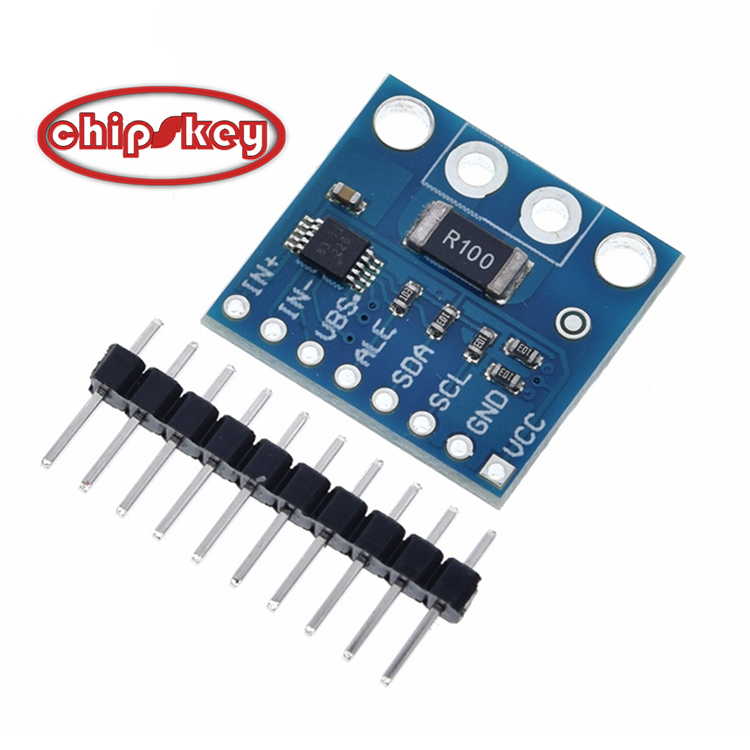

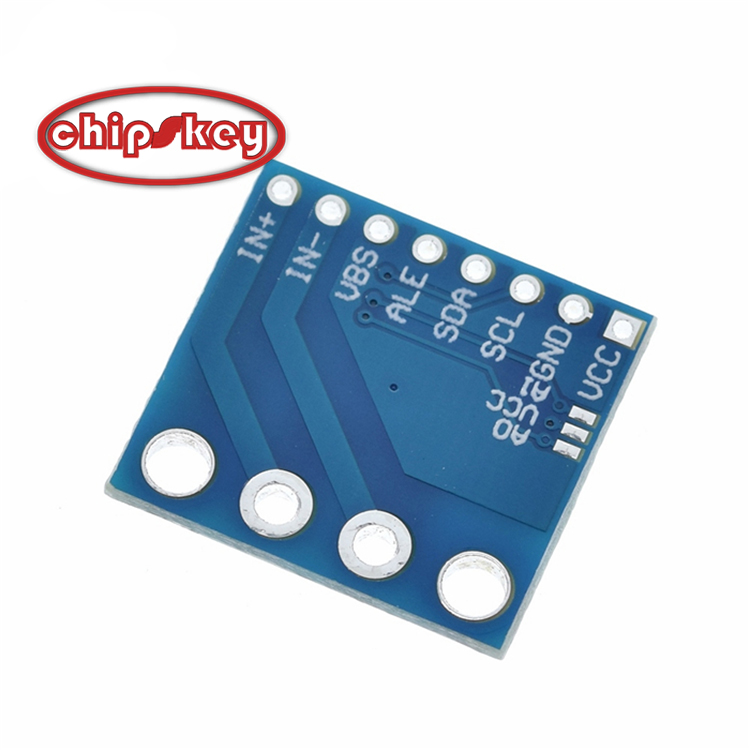

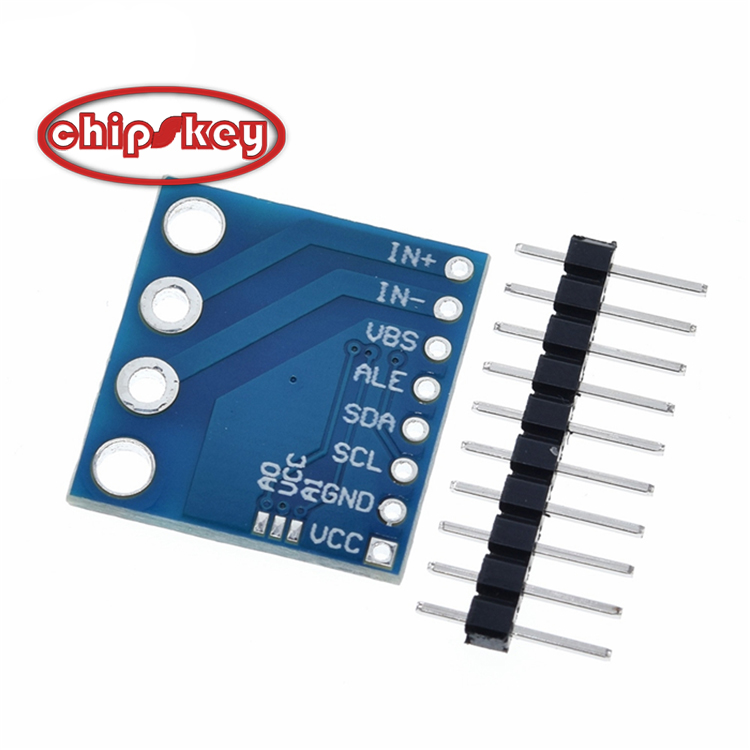

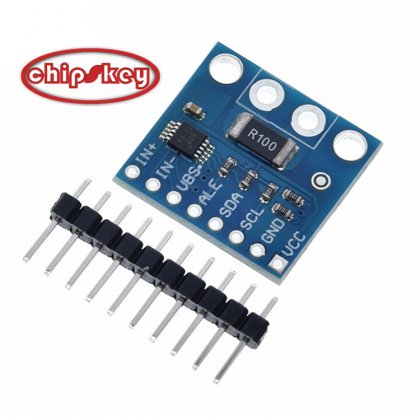

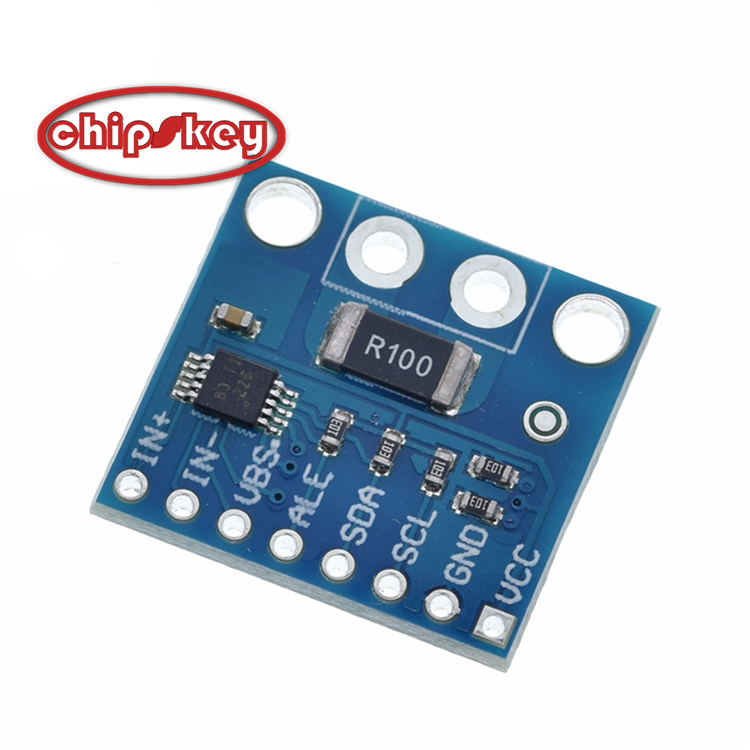

226 INA226 Voltage Current Power Monitor Alarm Module 36V Bi-Directional

226 INA226 IIC Interface Bidirectional Current / Power Monitoring Sensor Module 226 - Supports 36-Way, Bidirectional, High-Accuracy, Low- and High-End Power Monitor Alarm, I2C Output Current The INA226 has a maximum interference voltage of 10 micro-volts (uV) with a maximum gain error of 0.1% and 10 times the accuracy of the industry-leading competing products. The device is a complete 16-bit single-chip solution that provides comprehensive, programmable measurements of current, voltage, and power for the I2C interface. The INA226 offers great advantages for designers of servers, computers, telecom equipment, power management equipment, and test equipment to meet the precise power measurement requirements. Main features and advantages , A single-chip solution using an I2C interface that supports current, voltage and power measurements simplifies the design and layout limitations of an external multiplexer or ADC board; The industrys highest accuracy, minimum offset voltage of 0.1% uV, maximum gain error can not only achieve higher accuracy at low power, but also can use a smaller shunt resistor, I * R can reduce the loss; Independent programmable conversion time and sampling averaging techniques not only simplify the speed requirements of individual system customizations but also reduce the need for software and storage; , UA 420 Maximum Quiescent Current and uA Flag 2 Cut-off Enables Efficient Operation, Even with the INA226 Integrated ADC and Power Multiplexer, Power and Power Dissipation Product Details Product Size: 0.2 x 0.2 x 0.3 inch; 0.16 oz Shipping Weight: 0.3 oz
