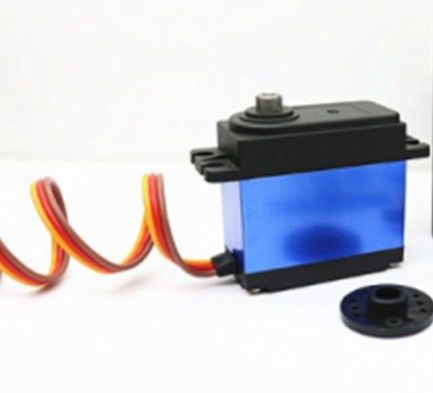

20KG Servo TD8320MG 180 Degree Servo
Description:
Item: TD8320MG Digital Servo
Operating Voltage: DC4.8~6.6V
Operating Speed (4.8V): 0.19sec/60 degrees
Operating Speed (6.6V): 0.17sec/60 degrees
Stall Torque (4.8V): 17.2kg.cm
Stall Torque (6.6V): 20.5kg.cm
Working Frequence: 1520μs/333hz
Teeth: 25T
Motor: Coreless motor
Dead band: 2μs default
Waterproof: Yes
Connector Wire Length: JR320 mm (12.6in)
Weight: 60g
Dimensions: 40.6X20.4X38mm
Features:
- High performance programmable digital high voltage standard servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- High quality coreless motor
- Middle CNC aluminium case
- Dual ball bearings
- Waterproof
