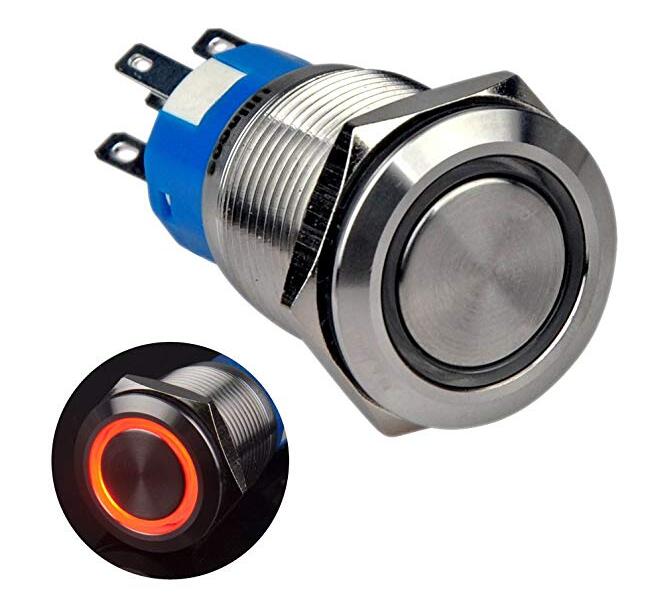

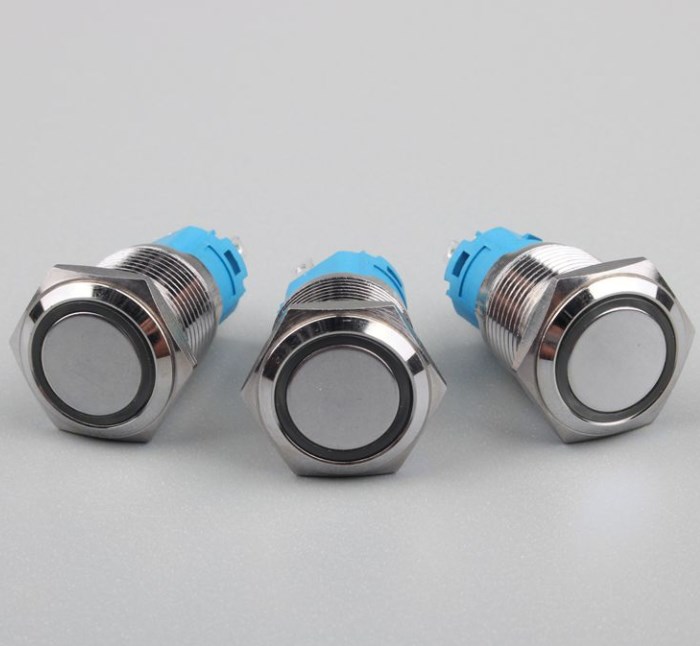

19mm red ring led push button switch with Momentary 1NO1NC RED

19mm red ring led push button switch with Momentary 1NO1NC RED

  • SKU: 33148
  • Shipping Weight: 17.4g
2165:viewed
US$2.30

  • 3V
  • 5V
  • 12V
  • 24V
  • 220V

  • Blue
  • Green
  • Red
  • White
  • Yellow

  • Power Sign
  • Ring Sign
  (9990 Pieces available)
Hot Products
  • Description
  • Customer Reviews
  • Payment & Shipping

Specifications Thread depth: 5/8" (16mm) Head diameter: 7/8"" (22mm) Mounting hole size: 3/4"" (19mm) Depth inc contacts: 1.5"" (38mm) Switch combination: 1NO1NC Operation types: Momentary Switch rating: 5A/250VAC, 5A/30VDC LED rating: 15mA, AC/DC 12V LED color: Red Head shape: Flat Enclosure material: Stainless steel Protection level: IP67, IK10
