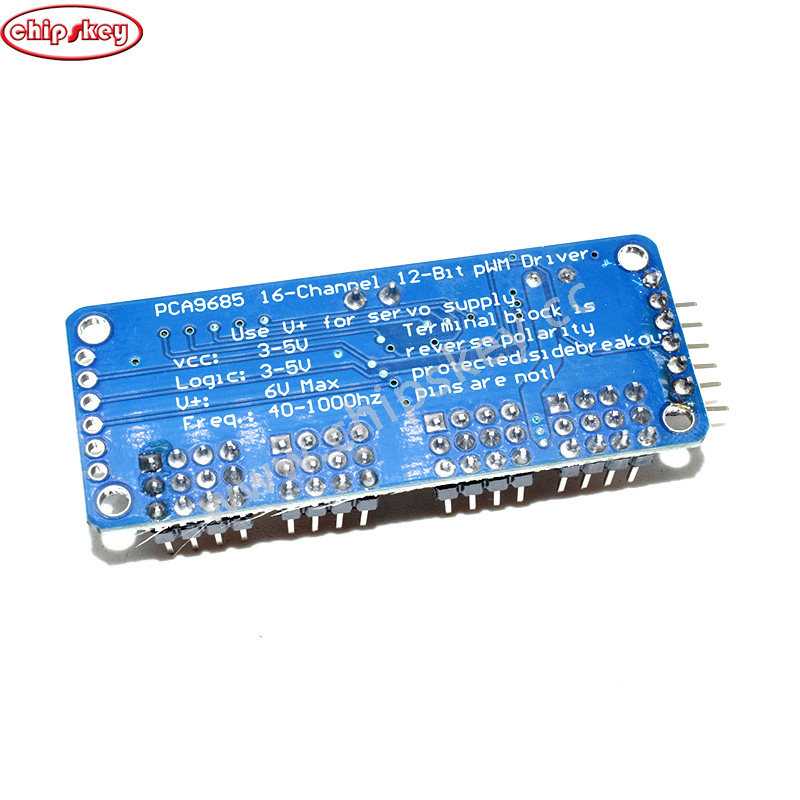

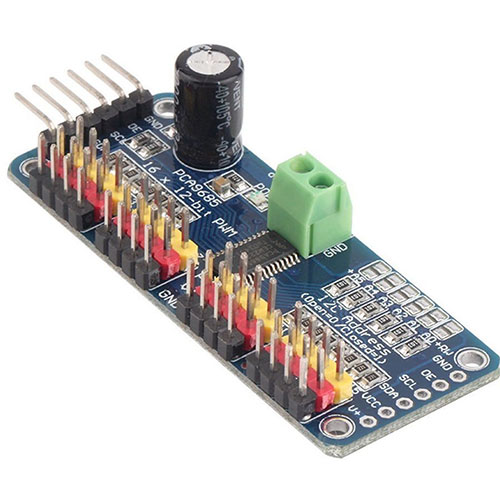

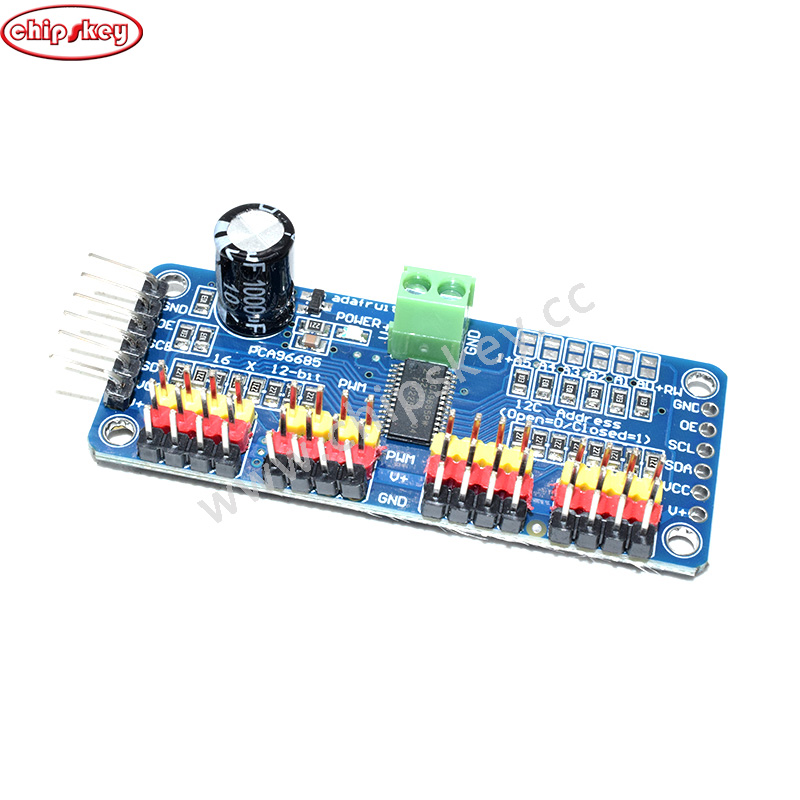

product description Technical Parameters: Voltage: DC5-10V power supply Communication Interface: IIC 16 road servo control Size: 25 * 61mm Features: PCA9685 chip wrapped in the center of the board Power input terminal Green power light 4 sets of 3-pin connector for easy insertion of 16 servo motors (servomotor plug slightly wider than 0.1 ") Polarity reverse polarity input terminal block design: V + line to place a large capacitor, the maximum external input voltage depends on the 10V 1000uf capacitor All PWM output lines have a 220 ohm series resistance protection, and can easily drive the LED product information Package size 4.2 × 2.7 × 0.7 inches Product weight 0.48 ounces
