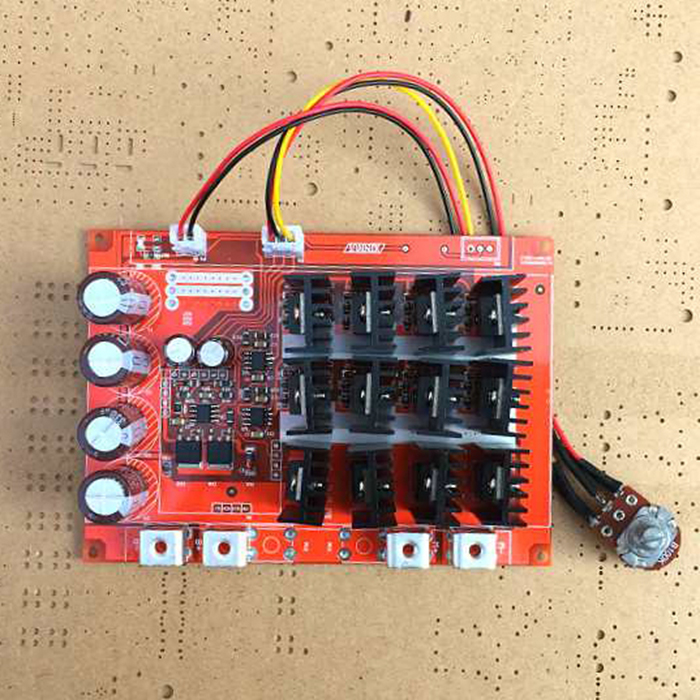

12V/24V/48V 60A 3KW governor pwm controller DC motor pump governor pulse width speed switch

Technical indicators:
(1) Working voltage: DC10V-DC50V Wide operating voltage range

(2) Control power: 0.01-3000W (maximum instantaneous starting current 60A, long-term working current should be controlled within 30A.)

Different working voltages correspond to different control powers as follows;

When the working voltage is 12V, 12V*60A = 720W

When the working voltage is 24V, 24V*60A =1440W

Operating voltage 36V 36V*60A = 2160W

Operating voltage 40V 40V*60A = 2400W

Operating voltage 50V 50V*60A =3000W

(3) Quiescent current: 0.04A (the quiescent current will not exceed 40ma when the operating voltage is between DC10V and DC50V)

(4) PWM duty cycle: 5%-100%

(5) PWM frequency: 15khz

(6) Working temperature: -20 -- 40 (the ambient temperature is minus 20 degrees to 40 degrees above zero) The governor is of industrial grade quality and can work stably in sub-zero environment. General commercial grade quality governor It is not allowed to work stably below zero.

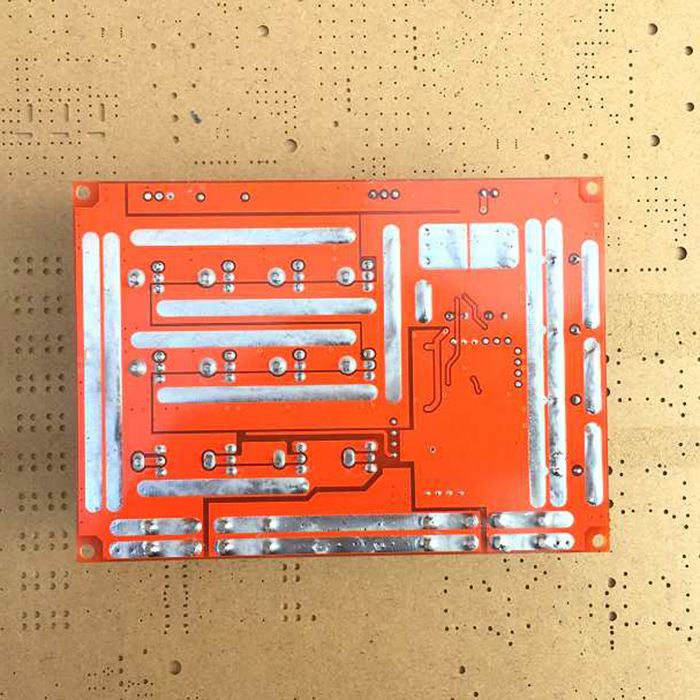

Board size: length 122 mm, width 87 mm, height 32 mm (excluding the adjustment section of the potentiometer)
