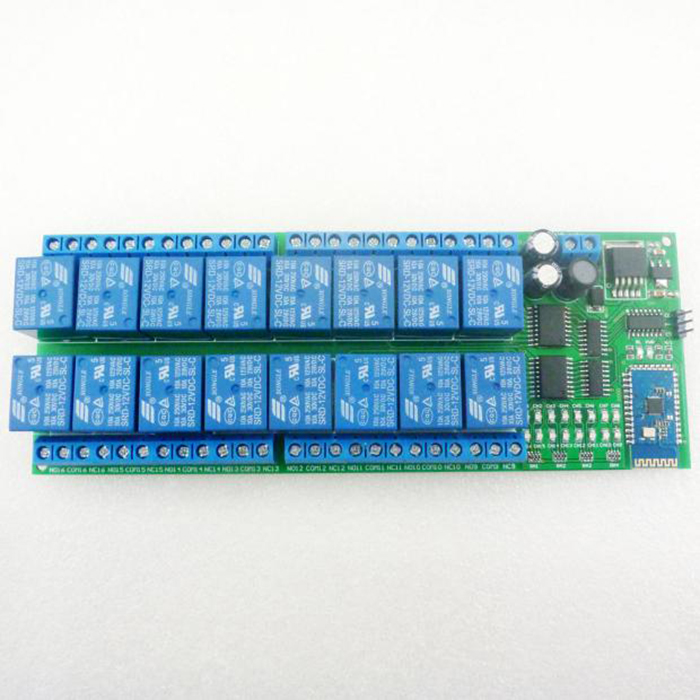

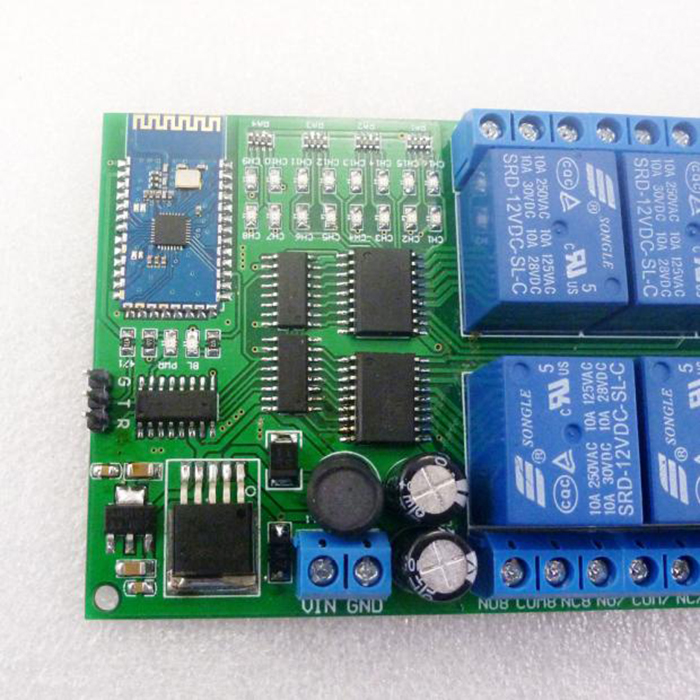

12V 16Channels DTMF Audio Decoding Relay /Smart Home Controller /Remote Control Module

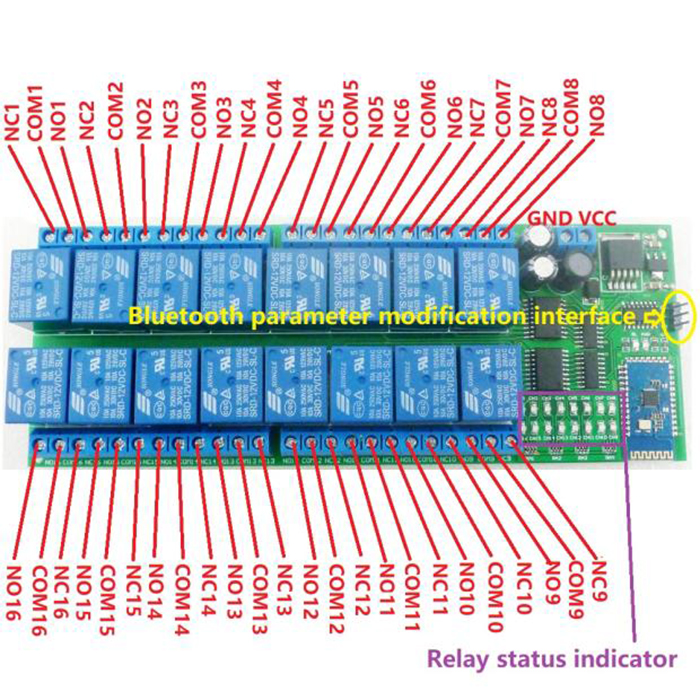

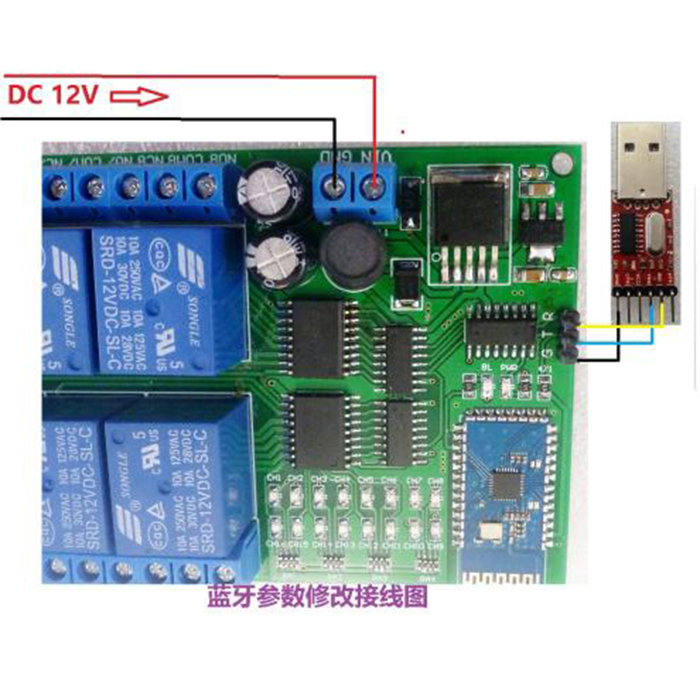

1 Working voltage: DC 12V 2 12V standby current (all relays off) 14MA, 1 relay "open" 41MA, 2f relay "open" 69MA, 3-way relay "open" 96MA, 4-way relay "open" 123MA, 5-way relay "open" 150MA , 6-way relay "open" 177MA, 7-way relay "open" 203MA, 8-way relay "open" 229MA, 16-way relay open 480MA 3: Send commands through the Bluetooth APP to control the conduction and disconnection of the relay (we provide the Bluetooth APP, you can also use your own APP to control the relay, send a simple command to control) 4: Jog Self-locking Interlock Relay "open", relay "off" 5 instructions 5: The name and connection password of the Bluetooth can be modified by the AT command. For details, see "Bluetooth Parameter Modification Instructions". 6 Size: 175*65*19mm 6 Weight: approximately 222 grams ? Communication method: 2.1 Bluetooth ? Communication distance: 6-10 meters (depending on the actual environment) ? Control method: mobile phone Bluetooth wireless remote control relay switch ? Control port: 16 switches with normally open and normally closed functions ? Control voltage: AC 85-265V 10A, DC 1-110V 10A ? Bluetooth password: 1234
