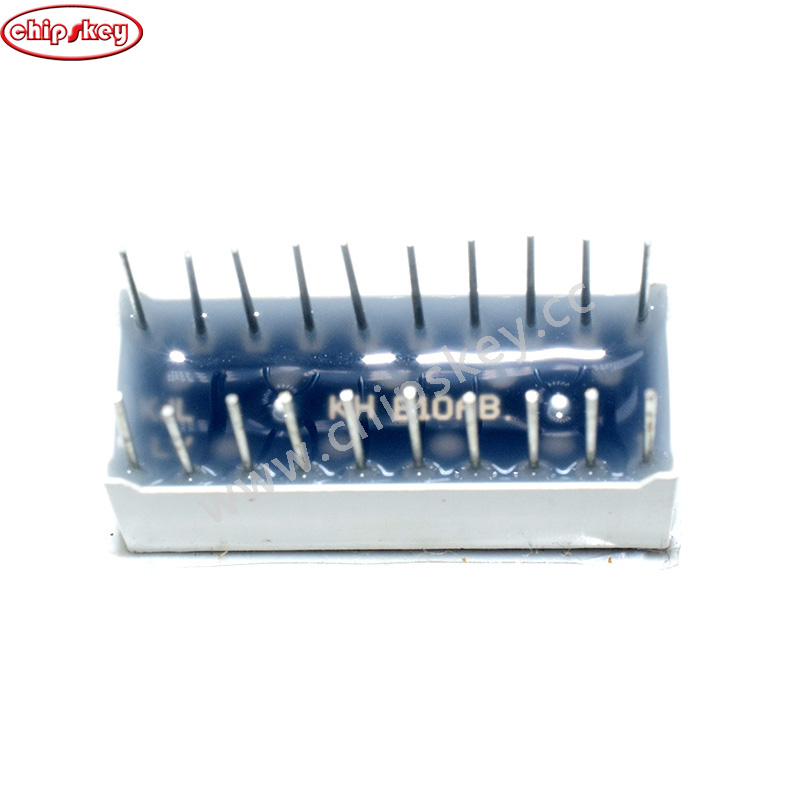

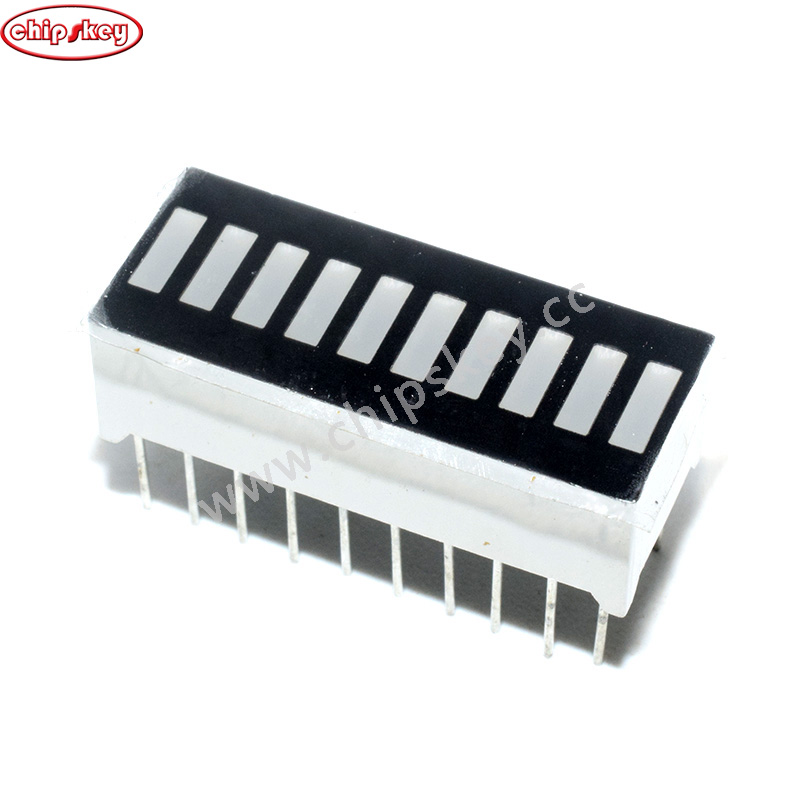

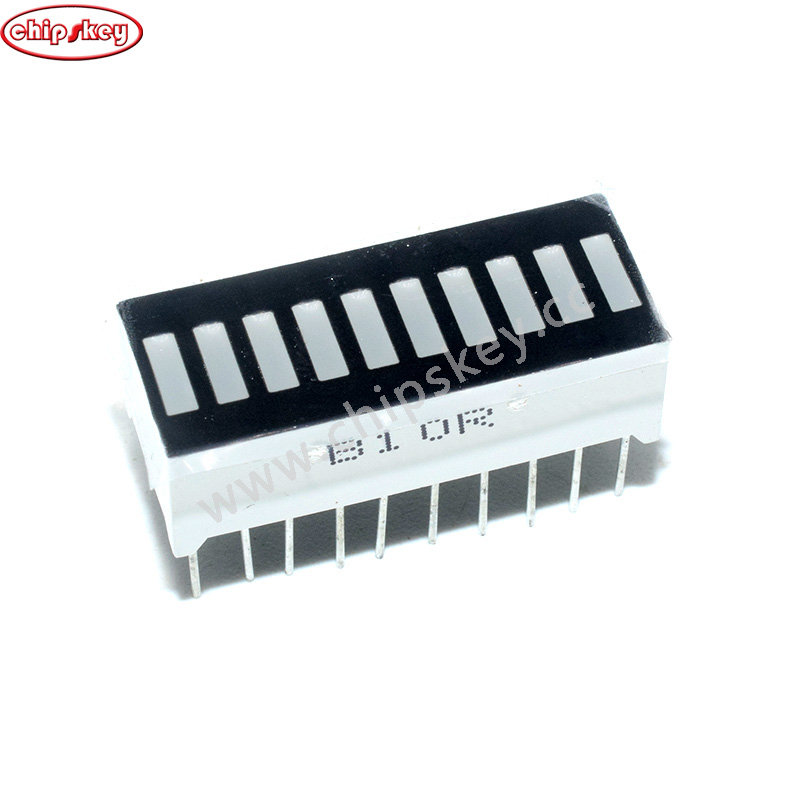

10-segment LED, 10 LED strip light bar highlighted in red

SKU: 6093
Shipping Weight: 2.52g

1033:viewed

US$0.30

(9725 Pieces available)

Add to Wishlist

Hot Products

Red Waterproof voltmeter 0.28 digital display/DC meter head/12V digital LED display 2-wire 3-30V

3 digital tube / 0.56 Digital Tube / 7-Segment LED / Common Anode / Yellow-Green

10-segment LED, 10 LED strip light bar highlighted Yellow

LED dot-matrix 3mm 5x7 Column Common Cathode Red LED Display

Description
Customer Reviews
Payment & Shipping

Dimensions & Weight Dimensions 2.5 cm x 1.1 cm x 1 cm Weight 5 g

Frist ,

（PART NO.）： B10SR

Aplication：

Outer Dimension

Pancl Length： 25.4mm

Pancl Width： 10.1mm

Pancl Thickness： 7.9mm

Emitted Color： Red

Lead Pitch 2.54mm

Second ,

Item	Symbol	（Max）	Unit
Item	Symbol	Red	Unit
（Power Dissipation）	Pd	57	mW
（Peak Forward Current）	Ifp	80	mA
（Continuous Forward Current）	Ifm	20	mA
（Reveerse Voltage）	VR	5	V
（Operating Temperature Range）	Topr	-30~+70	℃
（Storage Temperature Range）	Tstg	-40~+85	℃
（STATIC Voltage）	Var	-----------	V

（1）（RED）

（Parameter）	TEST CONDITING）	Symbols	Min	Type	Max	Unit
（Luminous Intemsity）	If=20mA	IV	55	60	70	Mcd
（Forward Voltage）	If=20mA	VF	1.9	2.0	2.3	V
（Revbrse Current）	VR=5V	IR	-		20	uA
(Peak Wavelength)	If=20mA	λp	620	621	623	nm
(Spectral Bandwidth)	If=20mA	△λ	-	5		nm
(View Angle)	If=20mA	201/2	-	60		Deg

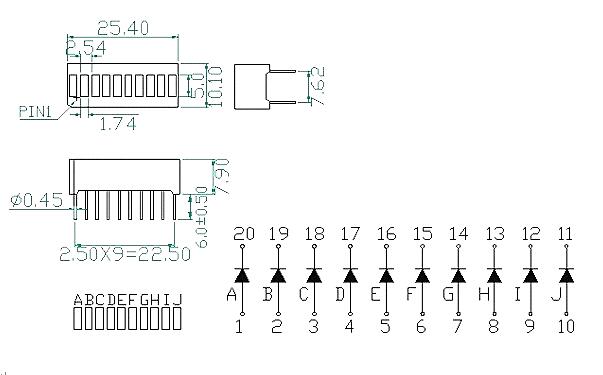

Thirth , B10SR Package Dimensions And Internal Circuit Diagram

B10SR PACKAGE DIMENSION

Fourth（Storage & Soldering Conditions）:

1、 Store with care. Storing the units in bad conditions will cause the reflector sheet and decrease it’s Adhesive power. Storage the products under the Conditjon:temperature (25℃±10℃) and humidity(65℃±20℃ ORH) our recommendation.

2、The Soldering tempwrature is 260℃±5℃ and Soldering Time should be less than 3 sec, and soldering iron power should be less than 30W.

3、 The soldering point should be farther than 1.6mm form body.
