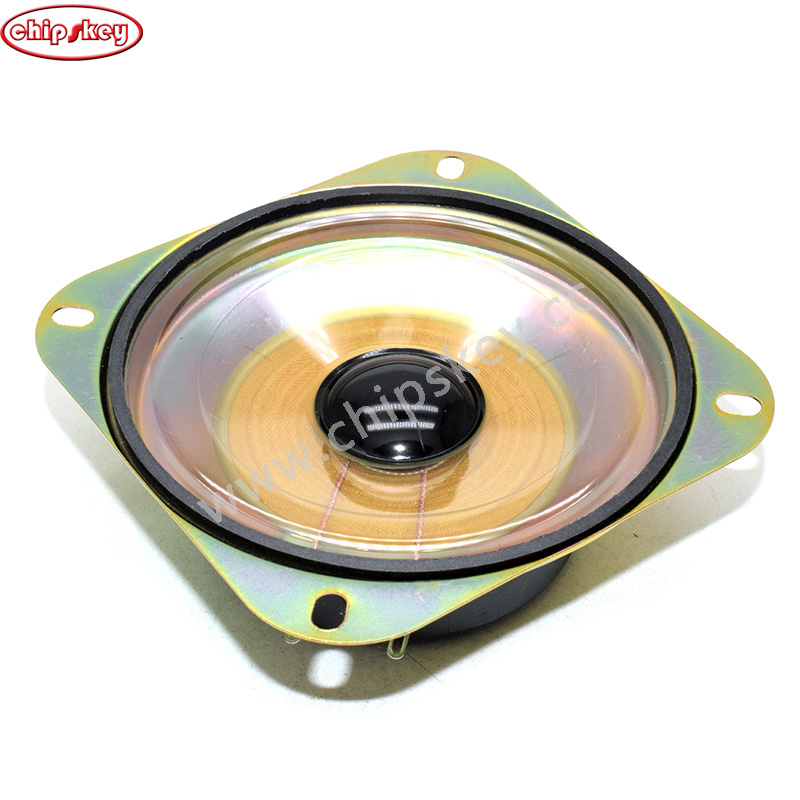

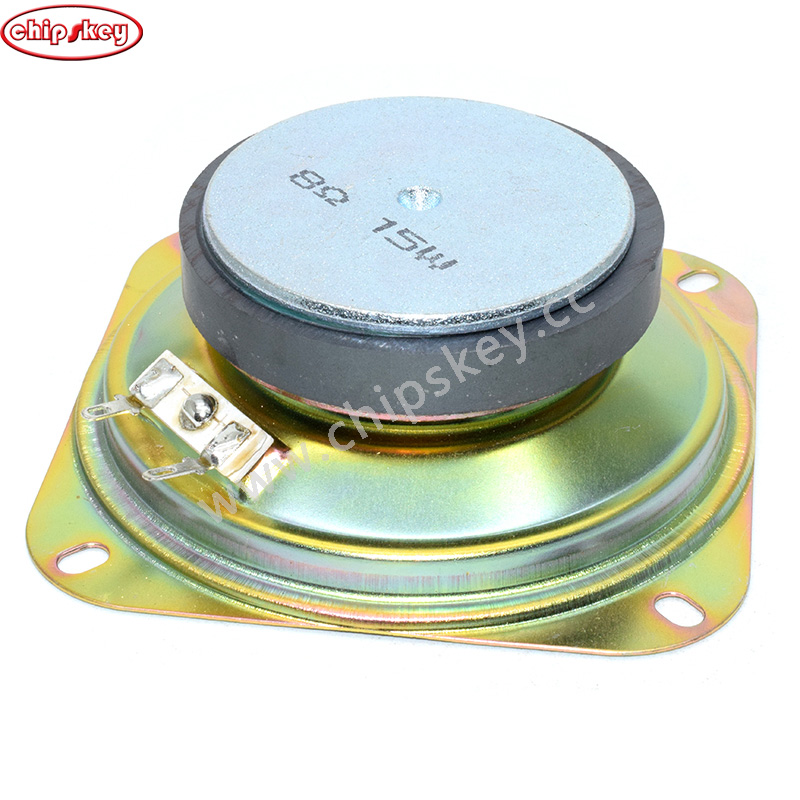

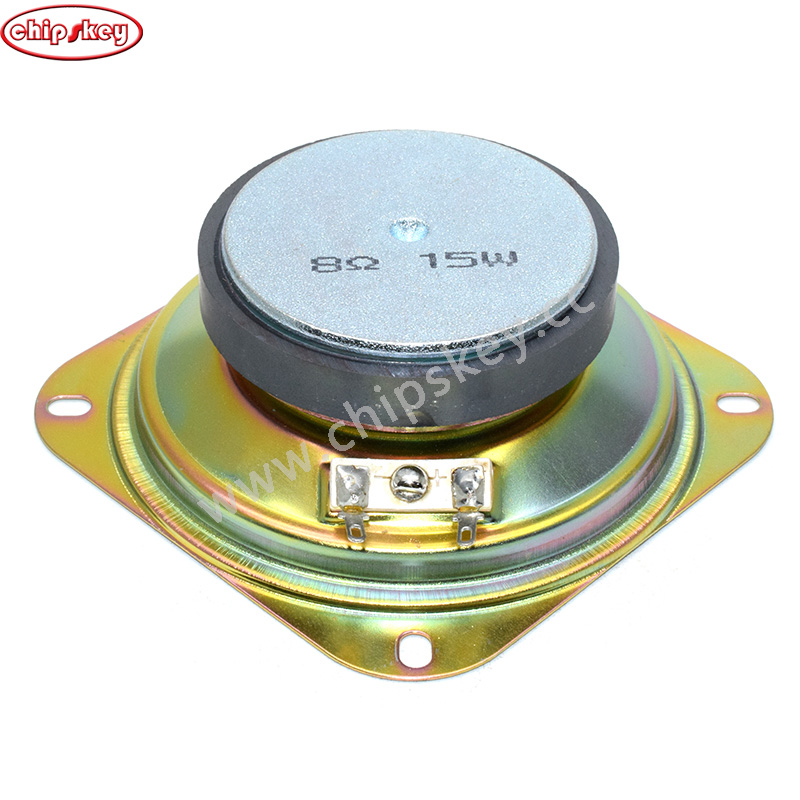

102*102*38 8ohm 15W Speaker
parameter:
Rated power: 15W
Maximum power: 20W
Sensitivity: 104±3dB (AT 0.1M/0.1W, Average of 0.8, 1.0, 1.2, 1.5KHZ)
Impedance: 8±15%
Response frequency: Fo ~ ~ 5KHZ
Resonance frequency: 800±20%
Distortion rate: ≤5%
Magnet size: Φ70*32*10
Weight: 375g ± 8%
Outer diameter: 102*102*38.5Hmm
Voice coil: Φ19.45mm aluminum tube ASV +Cu
Drum paper: waterproof basin PET
Rated voltage: 10.95 V
temperature:
Operating temperature: -30°C to + 60°C
Storage temperature: -40°C to +65°C
