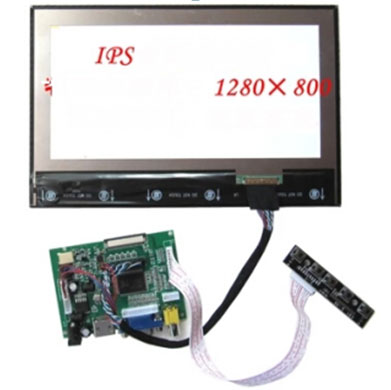

Screen Specifications: Viewing area 216.96 (H) × 135.60 (V) mm Resolution of 1280 × 800 (V) Pitch 0.1695 (H) × 0.1695 (V) 16.7M pixels Power 2.1 (w) (typ) Electrical Interface (data) LVDS Dimensions (mm) 228.6 × 149.2 × 2.39typmm Module Weight (g) 190 (max.) Backlight Unit LED Driver board Specifications: Operating voltage: 12V power supply more than 1A current requirement within 2A, as with the vehicle power supply is best to add a regulator, to prevent interference Rated power: 6-7W Signal Input: 2-way AV + VGA System format: PAL / NTSC VGA input: 1280 (H) × 800 (V) Physical resolution, support the resolution range can be adjusted between 640 × 480 --- 1600 × 1200! AV1 video input (can link equipment or front camera) AV2 Video input (to car automatically switch to the camera picture) Plug and Play: Support OSD Language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese Control: Multi-function OSD operation or potentiometer to adjust the brightness and color Features: mature scheme, clear display reversing the priority feature set: A, the default boot last saved channel. B, boot, reverse signals to switch to AV2, reverse signals disappear, back to the original channel. C, standby, reverse signals to switch to AV2, reversing the signal disappears, return to standby Applicable scope: used in video intercom, onboard computer, instrumentation, industrial control, medical equipment, ** equipment, portable display electronic equipment and other fields. * Accessories: LCD driver board + + + line screenVD key board
