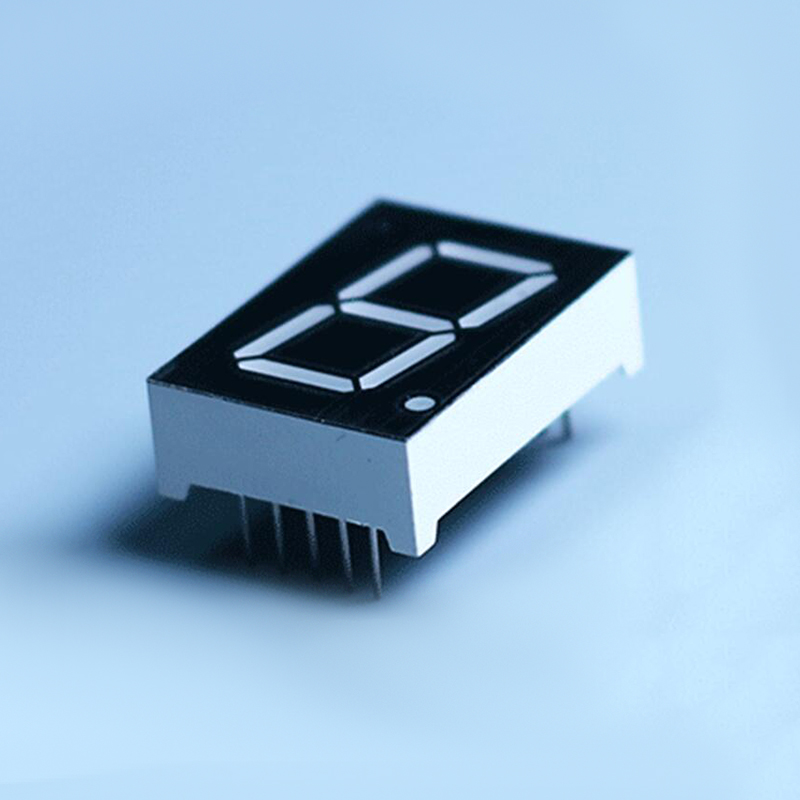

1 digital tube / 0.56 Digital Tube / 7-Segment LED / Common Anode / Yellow-Green
Introduction
1. Product Name: 0.56 inches per digit
2. Number of words: 1 digit
3. Screen size: 0.56 inches
4. Luminous colors: red, yellow green, blue (other colors can be customized)
5. 8-character height: 0.56

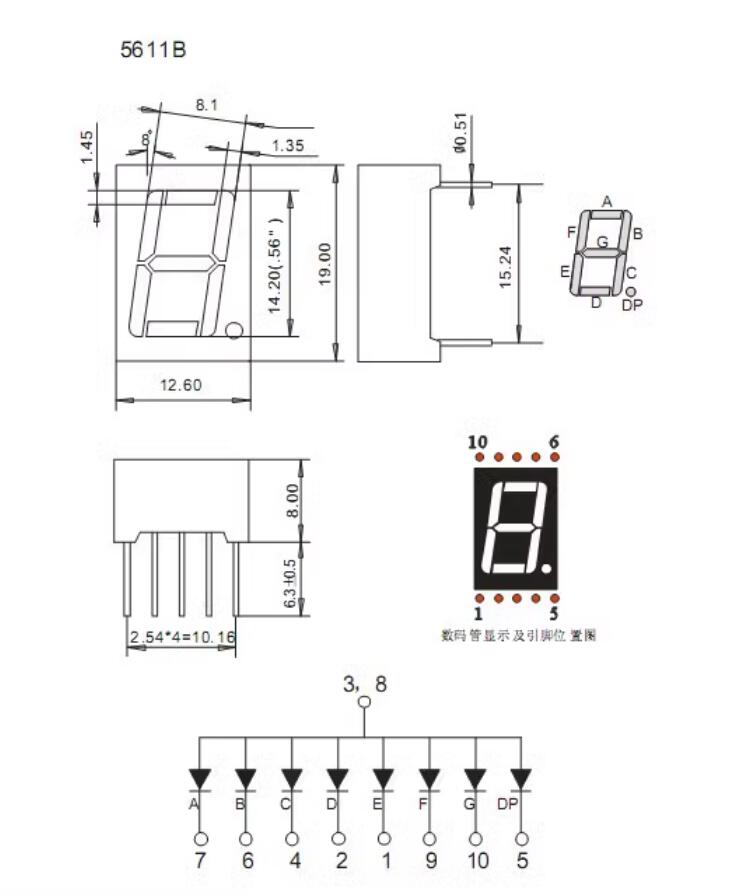

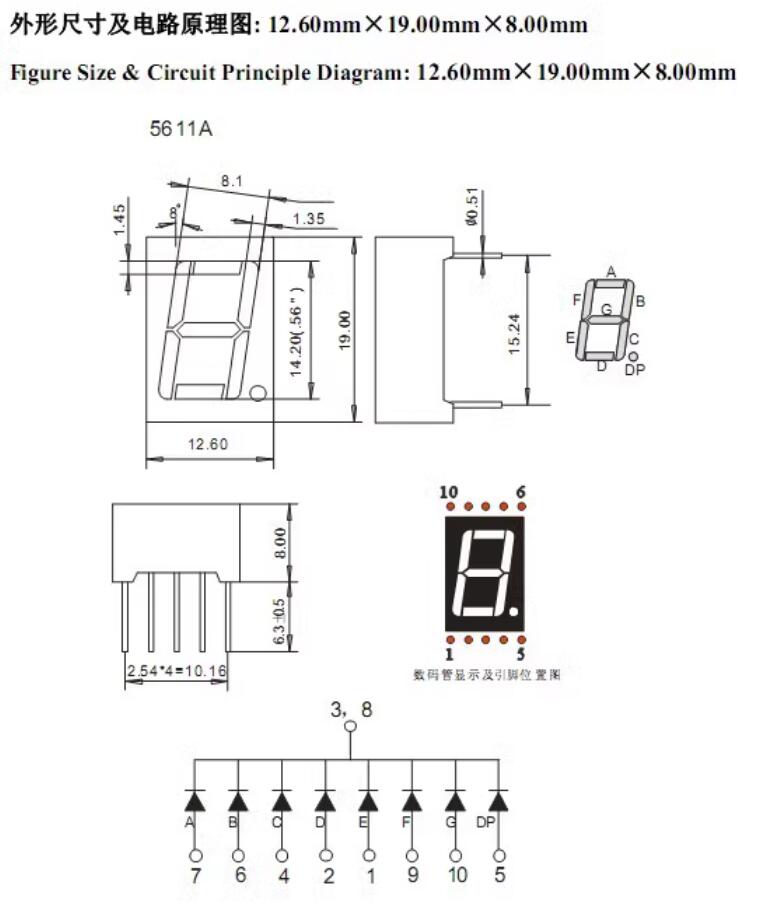

6. External dimensions: 19.0mm x 12.70mm x 8.0mm
7. Common feet: 3-8
8. Total PIN count: 10 pins
9. Polarity: common cathode/common anode
10. Surface color: Black panel
11. Font color: Red
12. Colloid color: milky white
Description of LED digital tube characteristics
★ Able to drive luminescence under low voltage and low current conditions
★ Extremely short luminescence response time (<0.1 μ s) Good high-frequency characteristics, good monochromaticity, and high brightness
★ Small size, light weight, and good impact resistance. Solid state packaging, with a glue filled packaging method, high stability
★ Long lifespan, with a service life of over 50000 hours
★ Can continuously scan and drive each byte
★ Good display effect and wide viewing angle
★ It is recommended to use constant current, as constant voltage may cause uneven brightness
Products with protective film on the surface can be peeled off before use
★ Welding temperature: 260 ℃, with a maximum residence time of 5 seconds

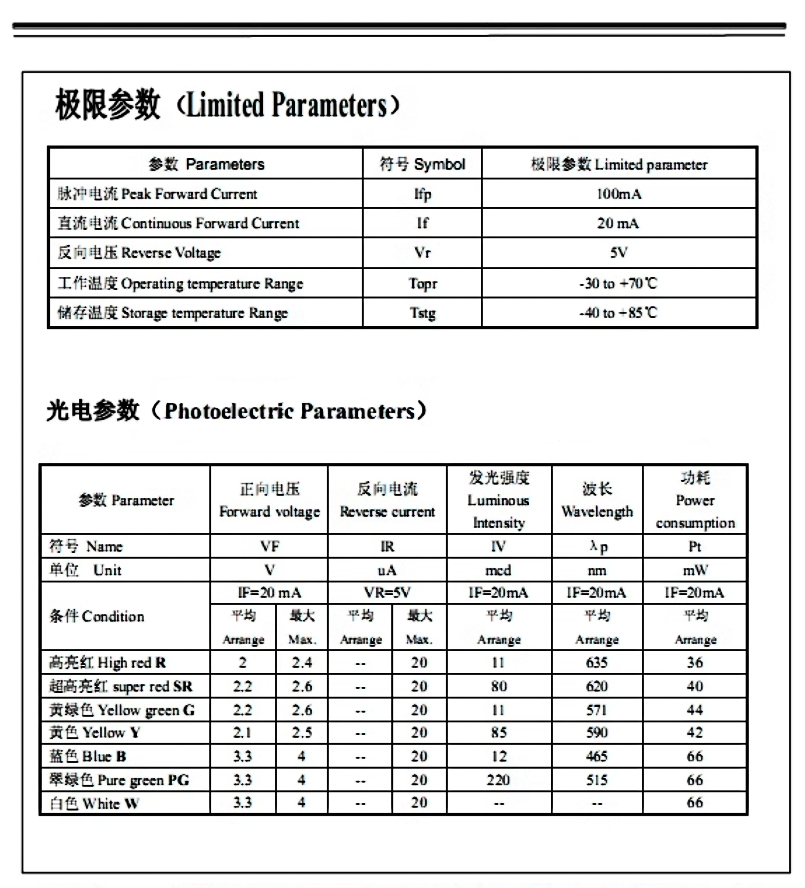

When the working temperature is above 25 ℃, Ifm, ifp, and Id must be reduced; The current reduction rate is -036mA/℃ (DC drive) or -0.86mA/℃ (pulse drive) power consumption
The rate is -0.75mW/℃. The working current of the product cannot exceed 60% of the corresponding working temperature conditions Ifm or Ifp.
★ Blue, emerald green, white, please take anti-static measures
