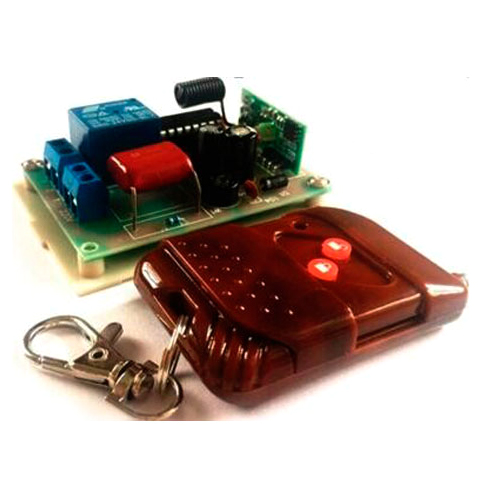

1 Channel Relay Lighting Wireless Remote Controler Switch remote control light kit One way 220v can wear wall

1 channel relay lighting wireless remote control switch remote control light kit one-way 220v can pass through the wall Wireless remote control switch is a widely used wireless control device. Garage door control, lighting control, remote control curtains. With easy installation, safe and reliable advantages. Second, the scope of application: garage doors, household appliances, switches and other wireless control areas Third, the technical parameters: 1. Working voltage: AC220V (mains 220) 2. Receiving sensitivity: - 105dB Relay contact capacity: 10A 250VAC | 10A 30VDC 4. Load power: single resistance load ≤1000W, inductive load ≤400W (for control of larger load plus contactor control) We do not recommend controlling high-power load, it is recommended to control the power of each channel at 1000W (resistive load) ; 600W (inductive load); 400W (motor load) below. 5. Working frequency: 433MHz-315MHZ L4 (Interlock: two channels can only have one output at the same time), T4 (self-locking: dual channels mutually) Control: independent output, does not affect each other click output and then click stop output) Reminder: The remote control button can only press a button, at the same time can not hold down more than 2 buttons, or interfere with each other will affect the normal work. 7. Remote control distance: no-load no-load test ground 100 meters (according to different environments different remote control radio products in practical applications, the gap is very large, there are also such strict purchase requirements!) 8 Load Type: CFL fluorescent lamp LED motor load and so on 9. Output: Relay commonly used / normally open / normally closed (flexible application can control a variety of voltage load) 10.Coding: fixed code (welding code) The motherboard and remote control need the corresponding pin code, the status is: high, low, floating. 11. Configuration Description: A remote control, 220V receiver full shell
