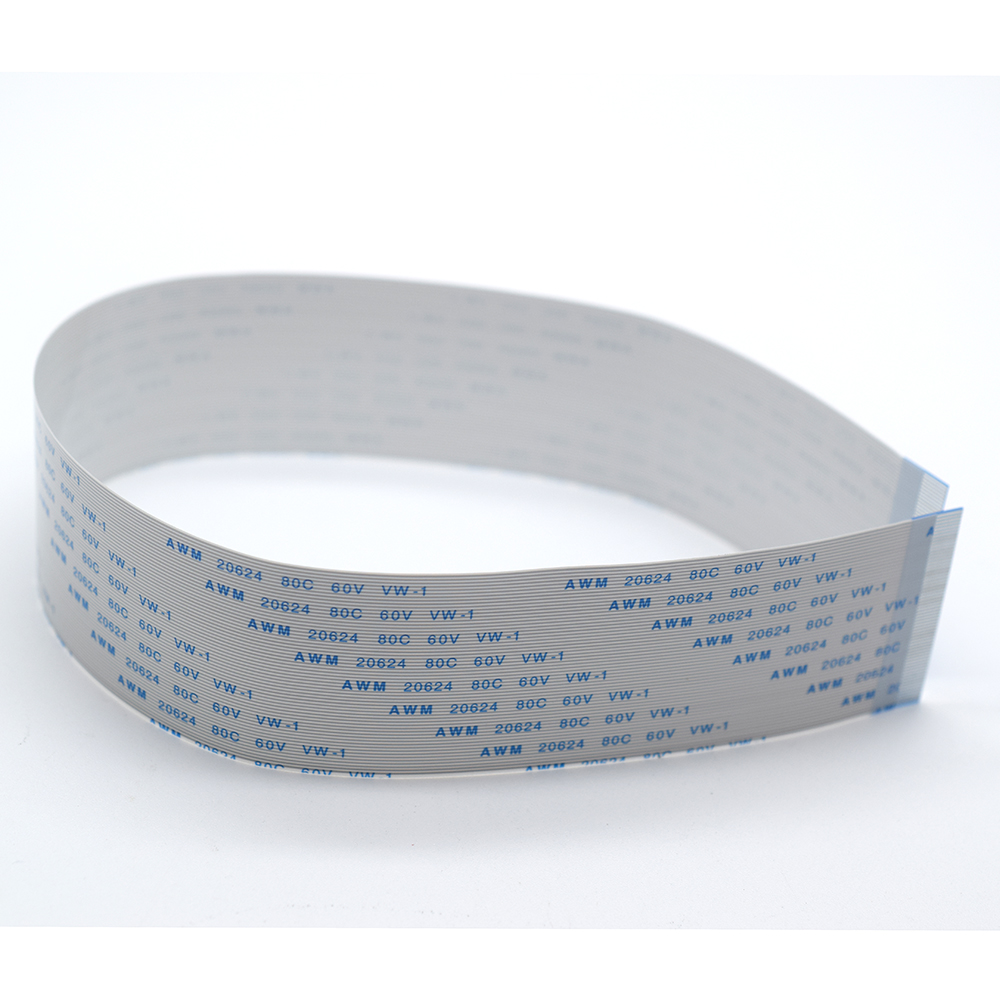

0.5-60P-300MM A-B Cable
Descriptions:
0. FFC soft cable 0.5 pitch 60pin, the direction is of the Negative direction
1. P = bit = core = pin (number of copper)
2. Cable length: 30cm
3. Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm)
Spacing algorithm: bus width / (number of pins+ 1)
4. Direction (check the ends of the cable): A - B
5. Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.
