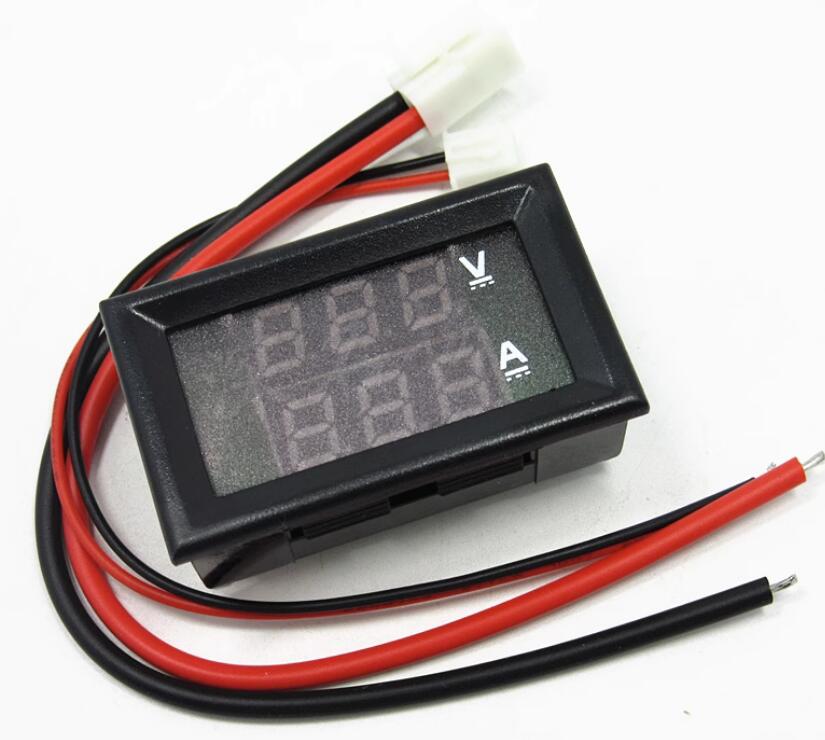

0.28 DC7V-100V Digital LED Voltmeter Amperemeter 10A at Optional
High voltage version, DC 7-100V can be directly tested without external power supply
High precision, high reliability, suitable for high-end applications
Equipped with reverse connection protection, reverse connection does not burn.
Voltage measurement range: DC7.0V-100V
Current testing range: 0-10A, 0-50A, 0-100A (3 range options)
Power supply range: DC7.0V-100V
Voltage error: ± 0.1%
Current error: ± 1%

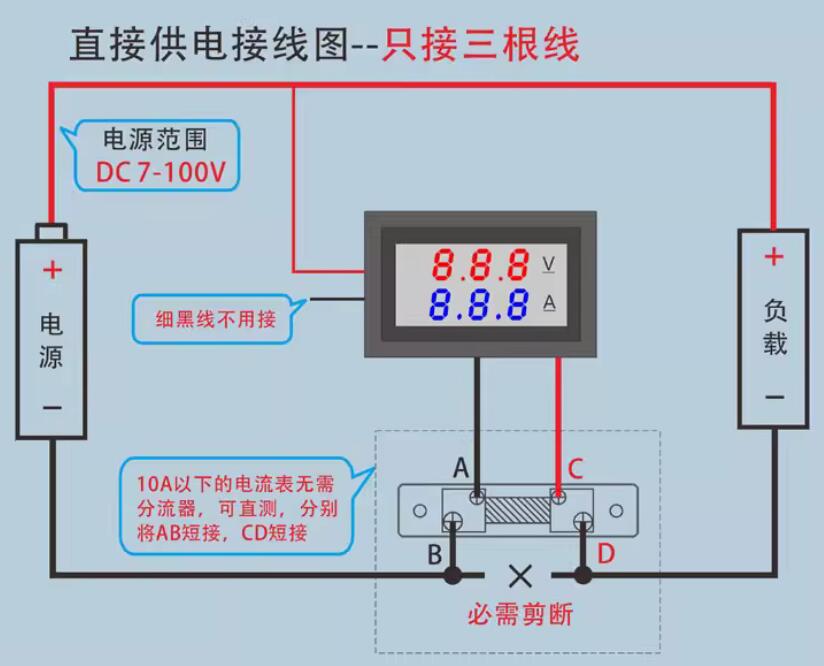

External shunt specification: 75 milliohms
Working current:<20mA
Refresh speed: approximately 300mS once
Display method: dual three position 0.28 "LED digital tube
Display color: red+red, red+blue. Optional
Lead length: 15cm
Overall dimensions: 48 x 29 x 22 mm, length x width x thickness
Installation hole: 46 x 27 mm
Working temperature: -10 ℃~65 ℃
